      • Uninterrupted Power Supply

      紹介 面白い 動画 ダウンロード <戻る

      Sinexcel

      Uninterrupted
      Power Supply

      Reliable is essential
      Energy saving is the breakthrough upgrading application

      View manual
      Contact us

      Sinexcel Uninterrupted
      Power Supply

      The quality of the electricity, the stability of the power systems, the efficiency of the electrical equipment are inextricably linked our daily life.

      Sinexcel devotes to power quality industry since year 2007, we concentrate on finer points, commit to high efficiency solutions of power quality.

      This time, Sinexcel is coming with high efficiency Uninterrupted Power Supply, starting the new era of UPS solutions

      Advanced ECO mode

      New era of UPS

      Sinexcel Approved Advanced ECO Mode

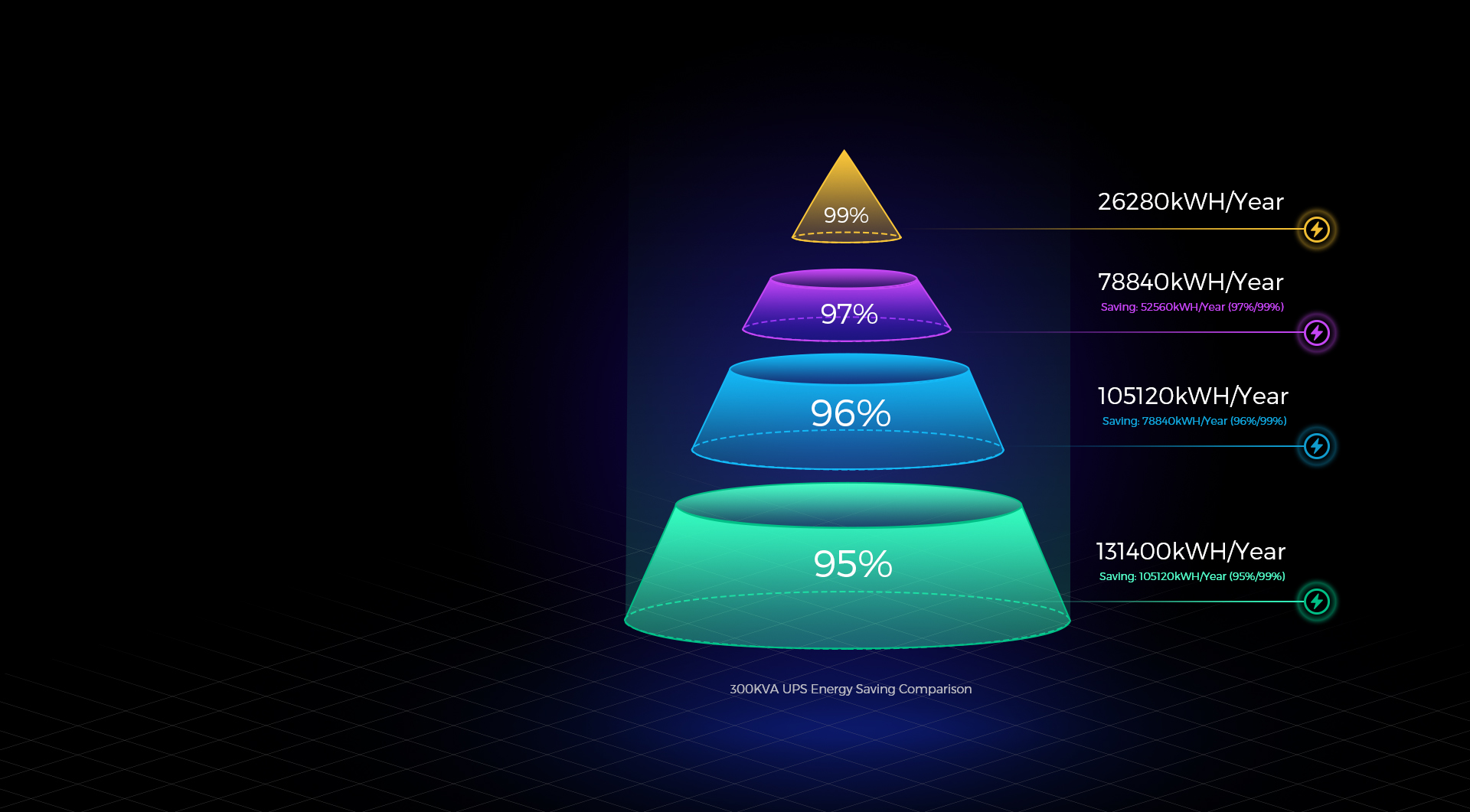

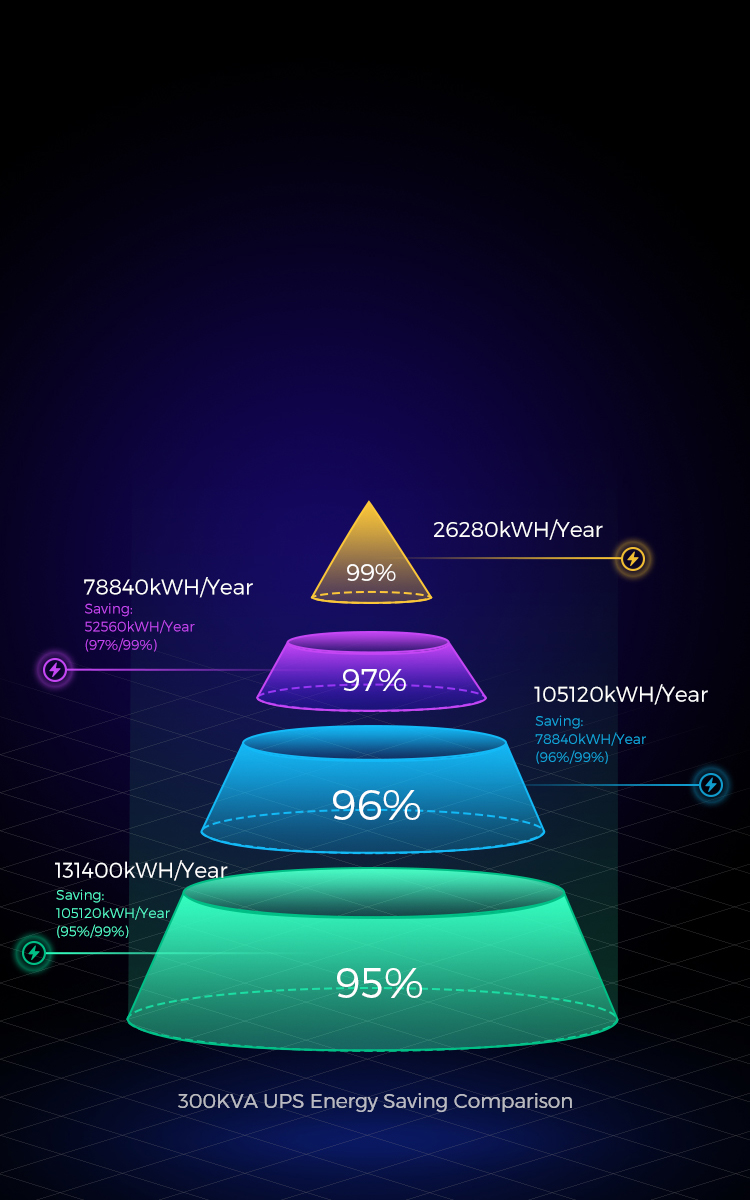

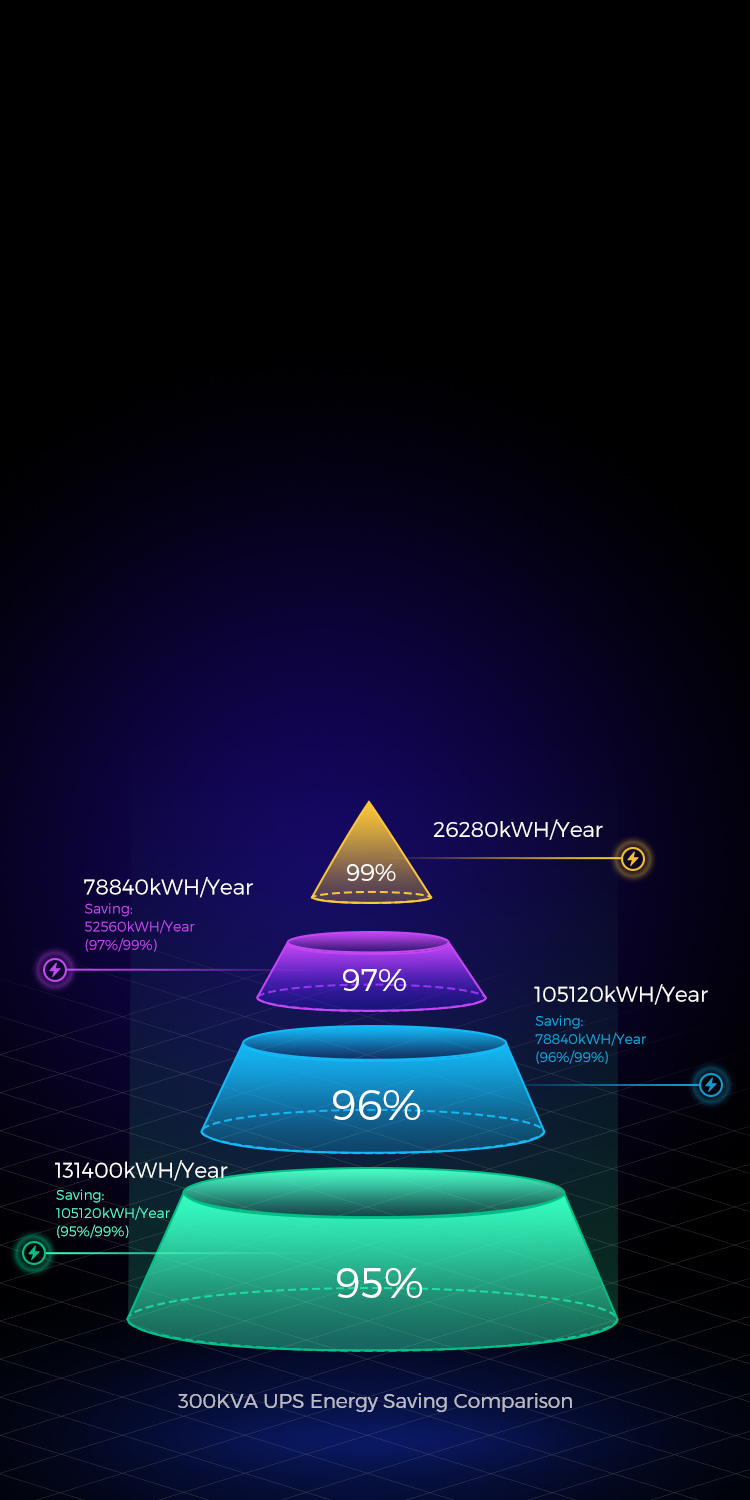

      99% high efficiency, power saving: 105120kWH/Year
      (99% compared to 95%)


      Advanced ECO mode

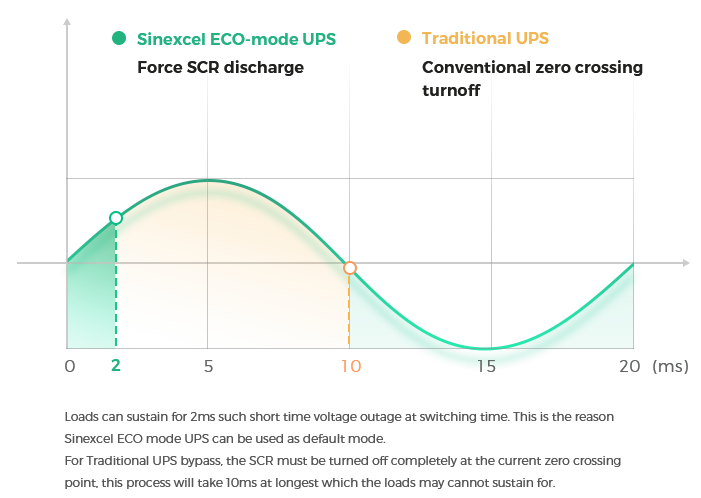

      2ms superfast switching time

      In the events of power failure,
      UPS can switch to online mode within 2ms to ensure the full power supply support

      Great innovations to achieve

      2ms fast switching
      Advanced ECO mode

      97% high efficiency on-line mode

      From the components selection to circuit design, we are striving to obtain a more efficient and stable UPS solution.

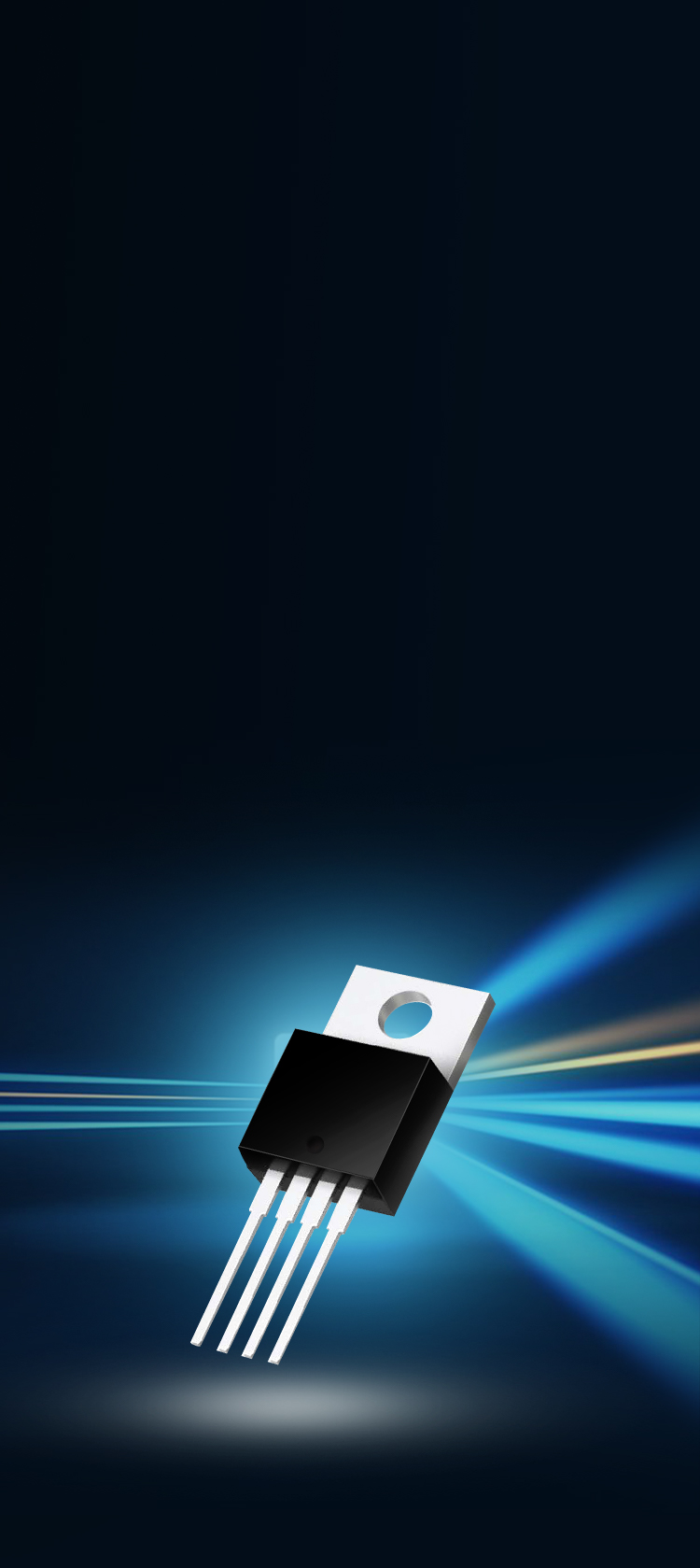

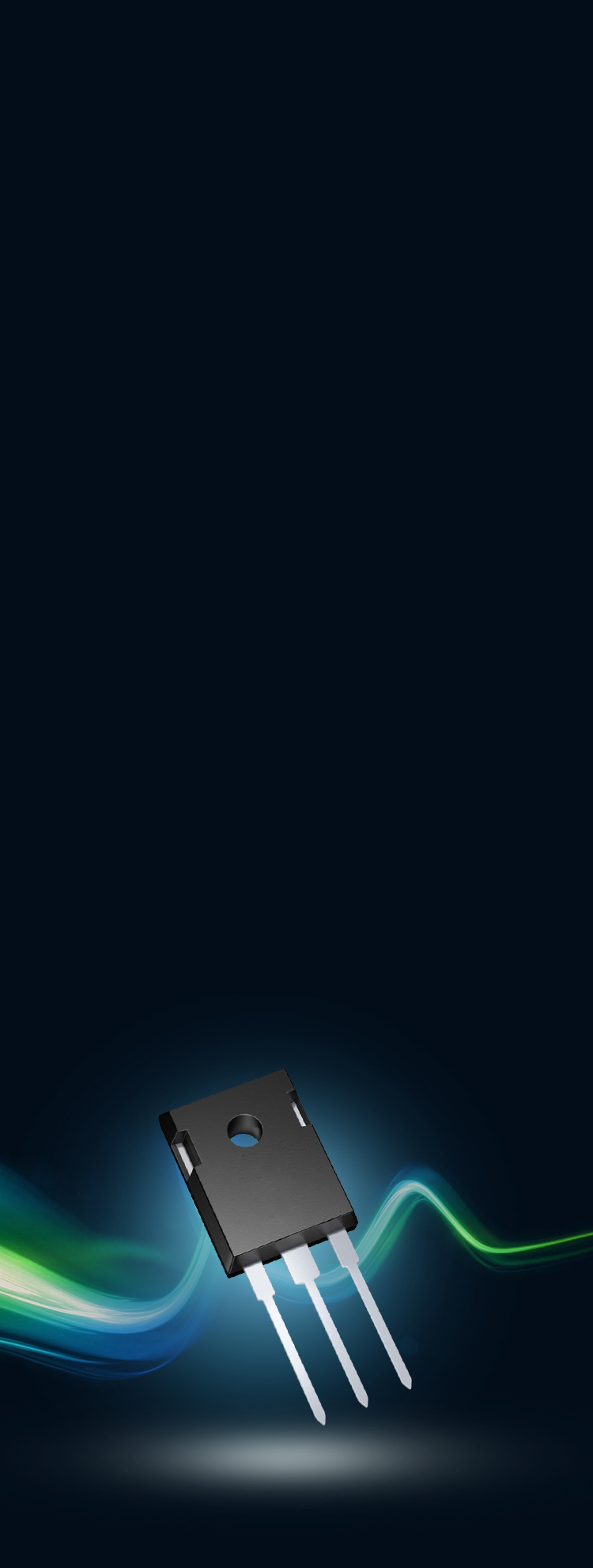

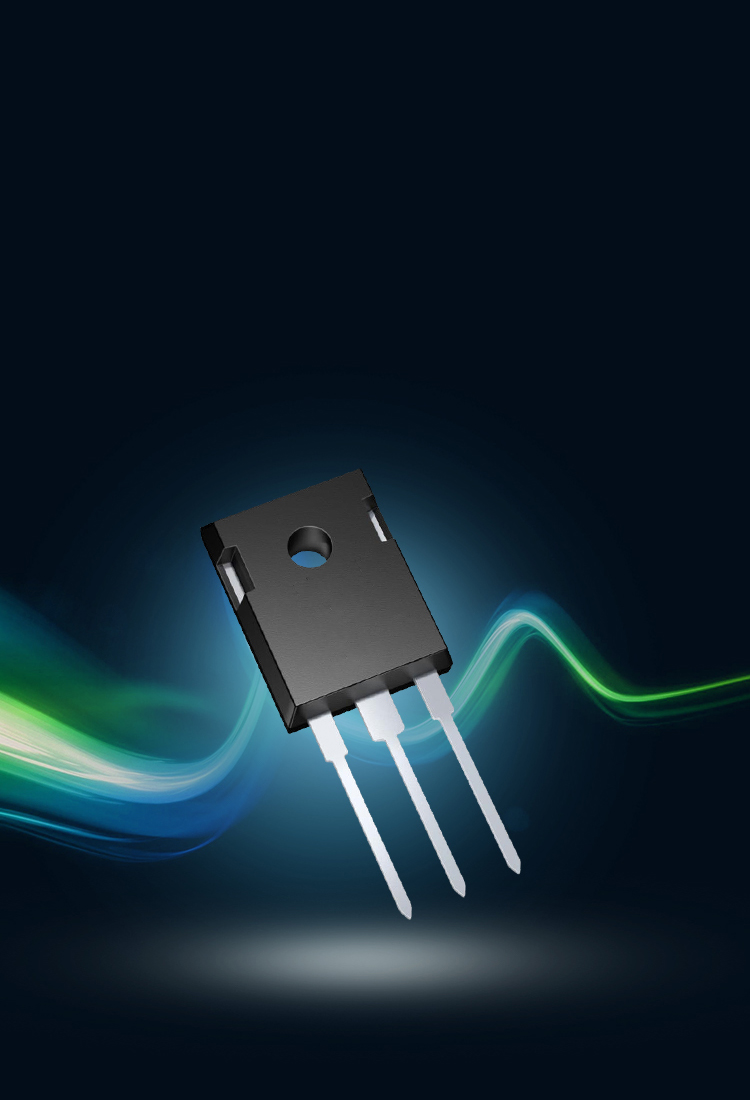

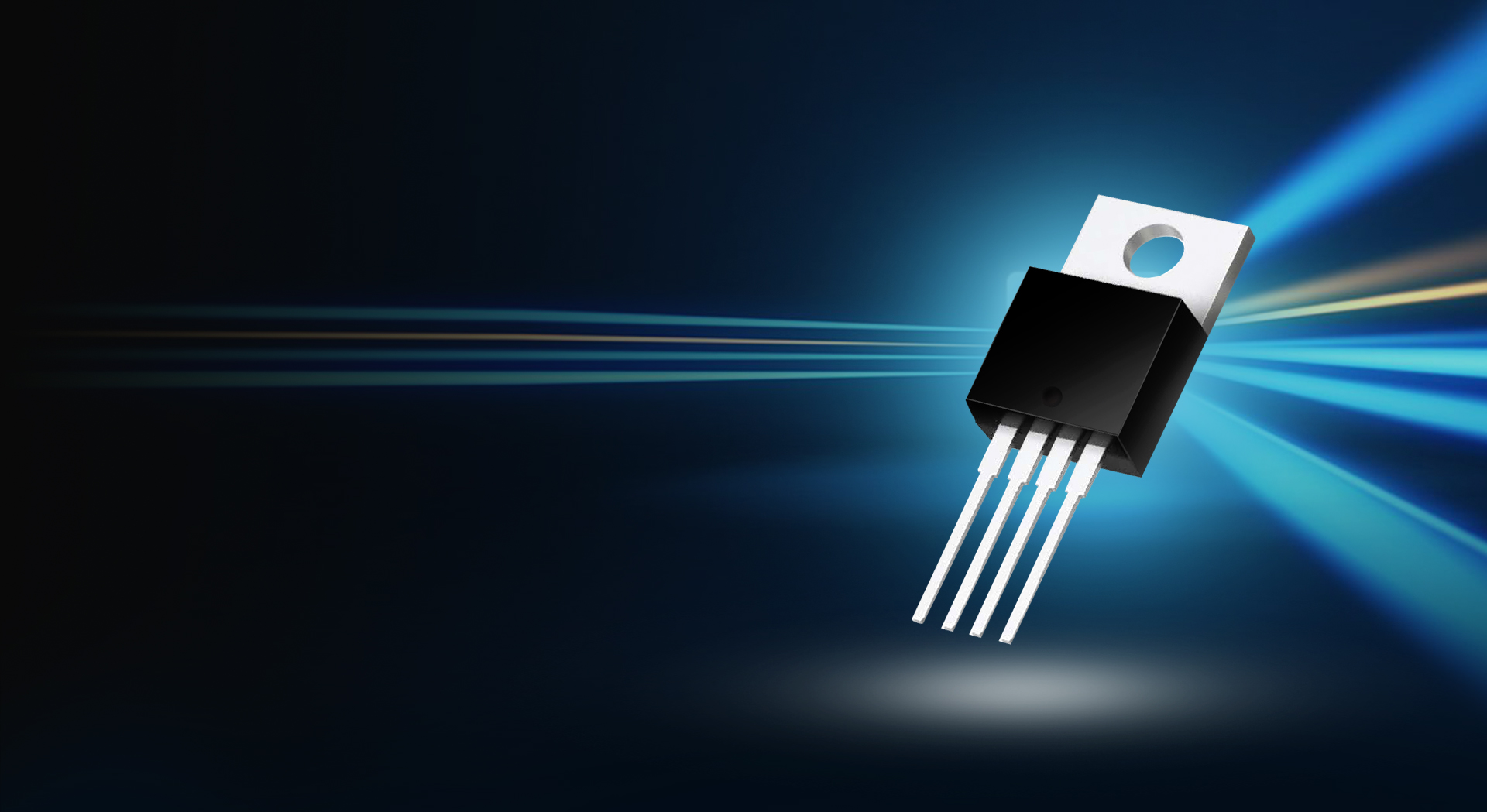

      Infineon
      fifth generation
      low-loss technology IGBT

      Adopt infineon Trenchstop TM H5 series IGBT, the best performance 650 V single-tube IGBT on the market.

      Compared to Infineon third generation H3 series IGBT, the turn-on loss Eon and turn-off loss Eoff are reduced by half

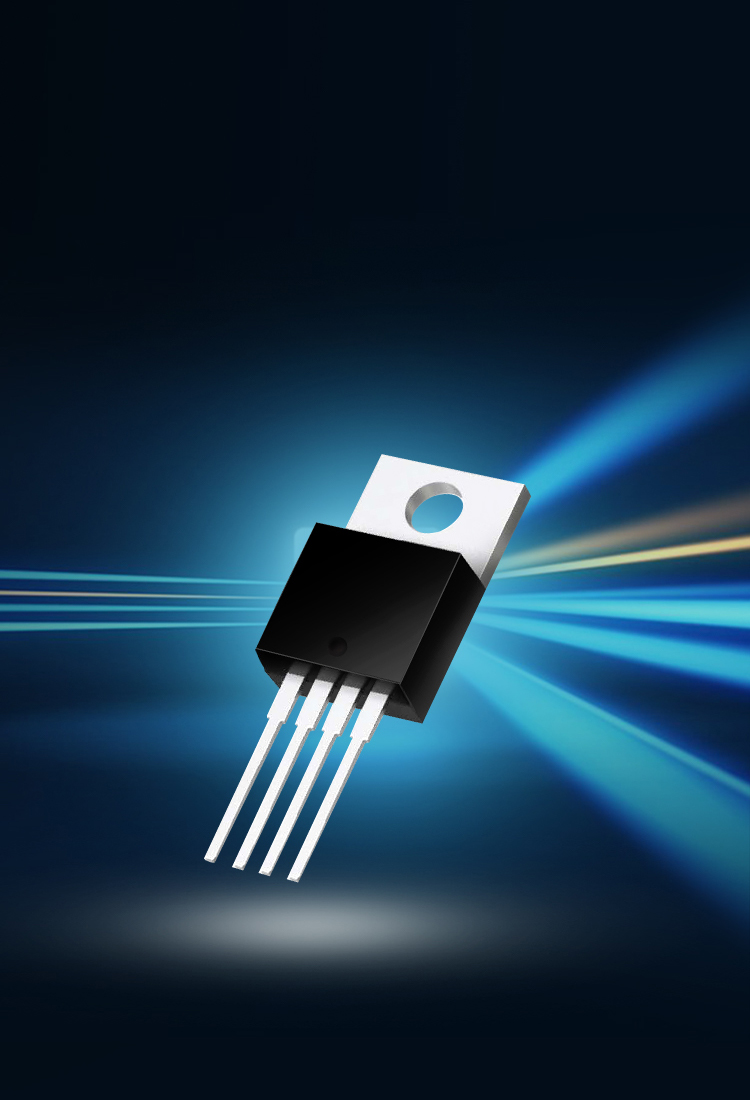

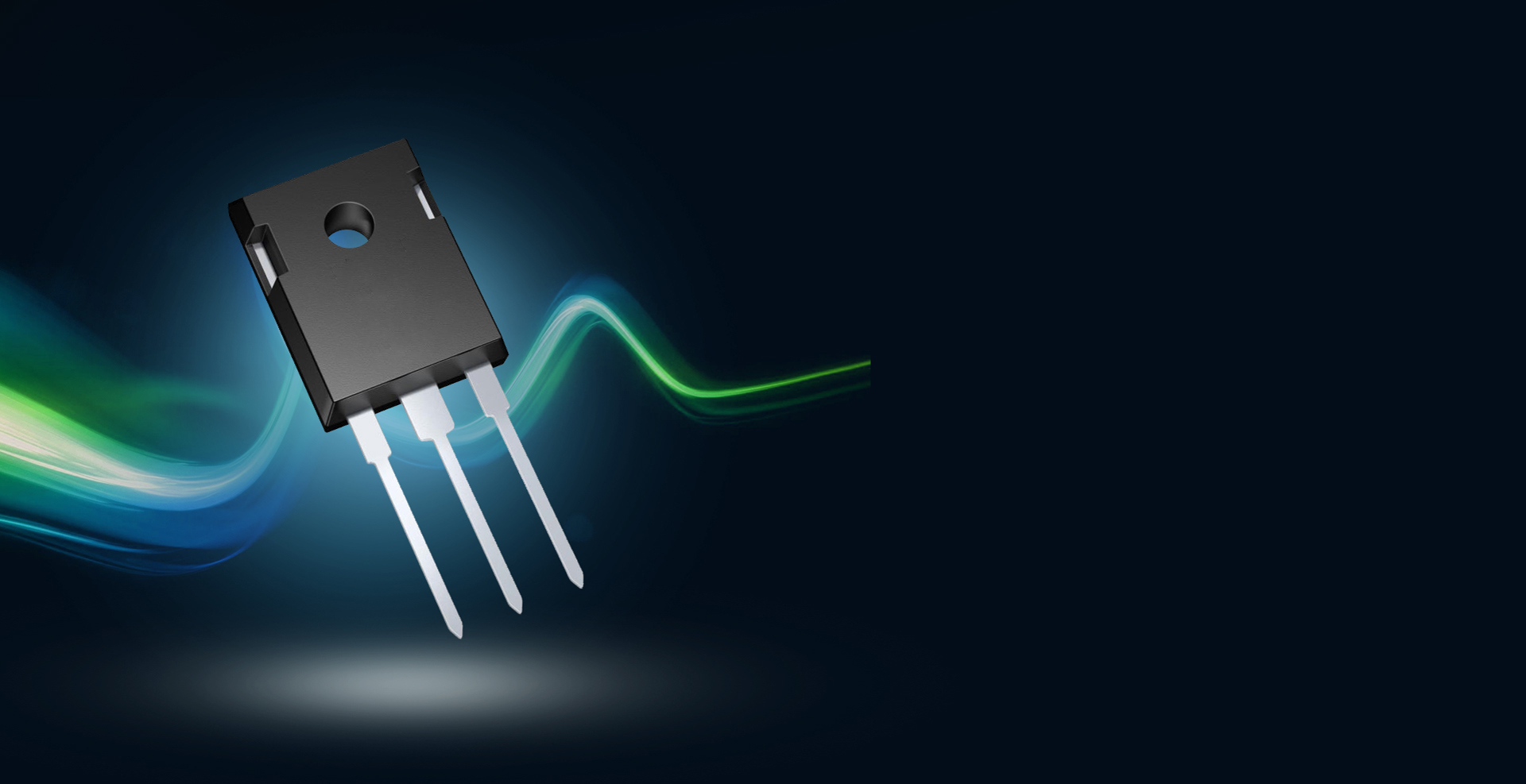

      1200V Sic Schottky
      diode to
      reduce hardware loss

      Sic (Silicon carbon) is the third generation power
      conversion technology



      Compared to Si Schottky diode, Sic Schottky diode has very small turn-on voltage VF, resulting in much smaller switching loss, close to zero loss.

      The reverse recovery time of Sic diode is extremely short, effectively reduce the turn-on loss of switching components and current impact, obtain higher system efficiency and power density, reduce the heat dissipation requirements and EMI impact

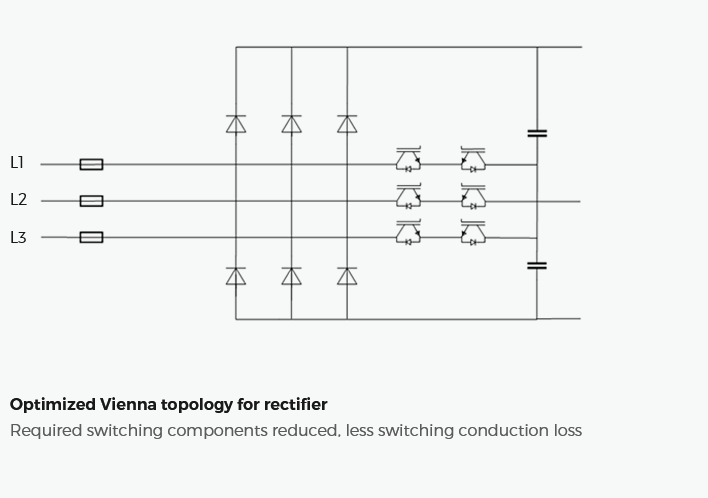

      Optimized Vienna rectifier design +
      Interleaved parallel technology to reduce loss

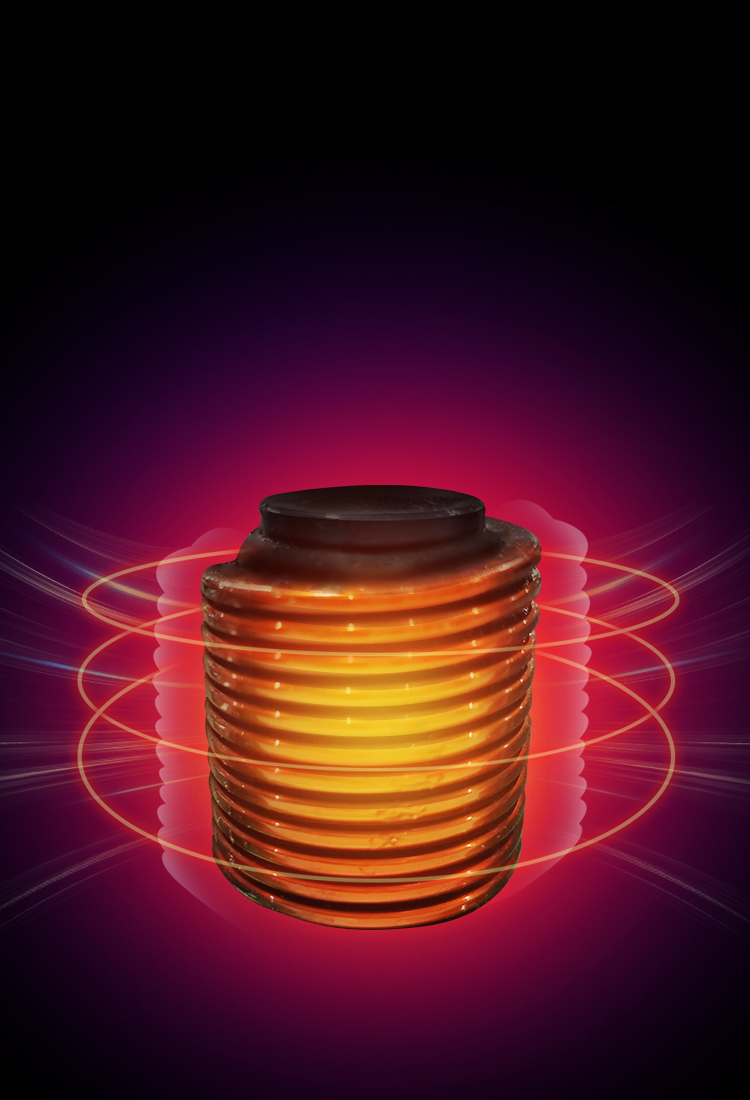

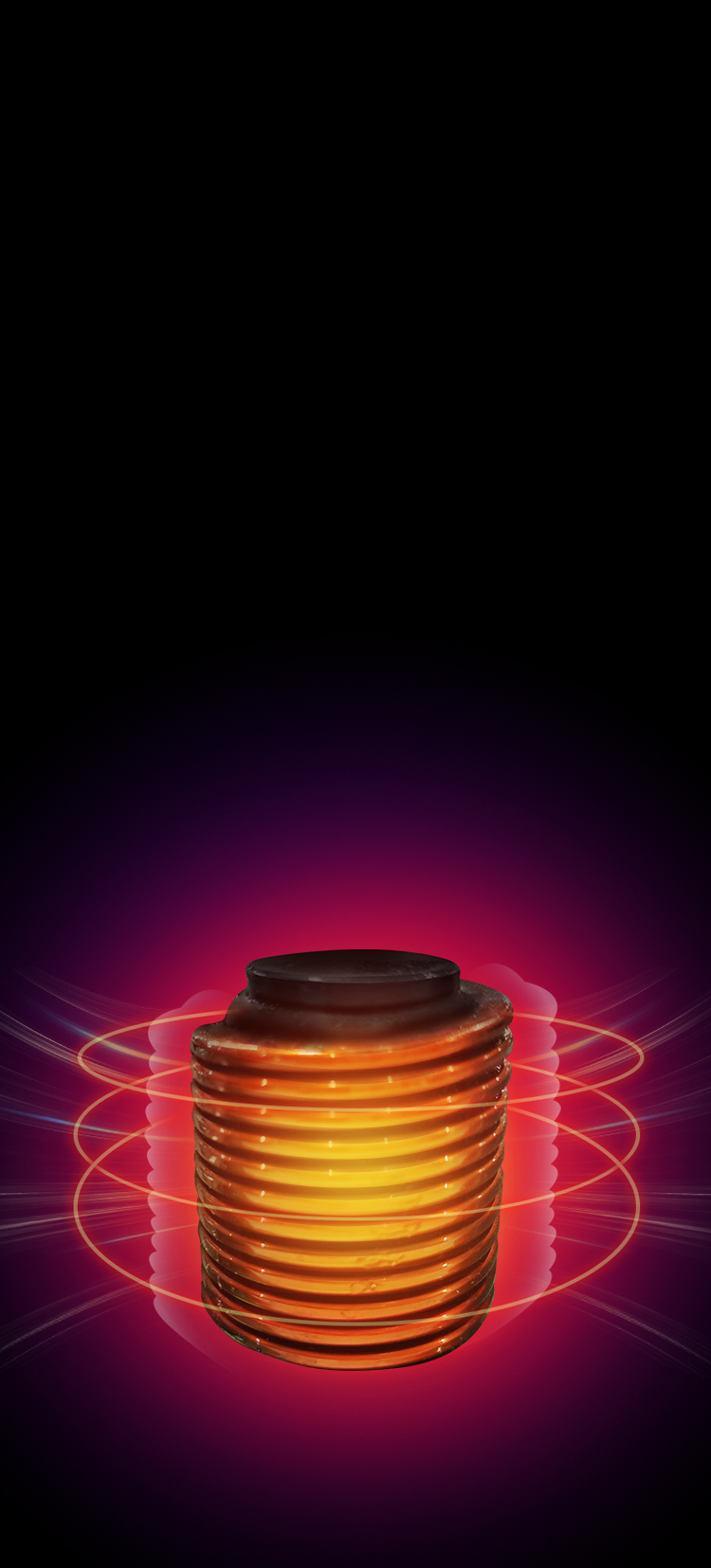

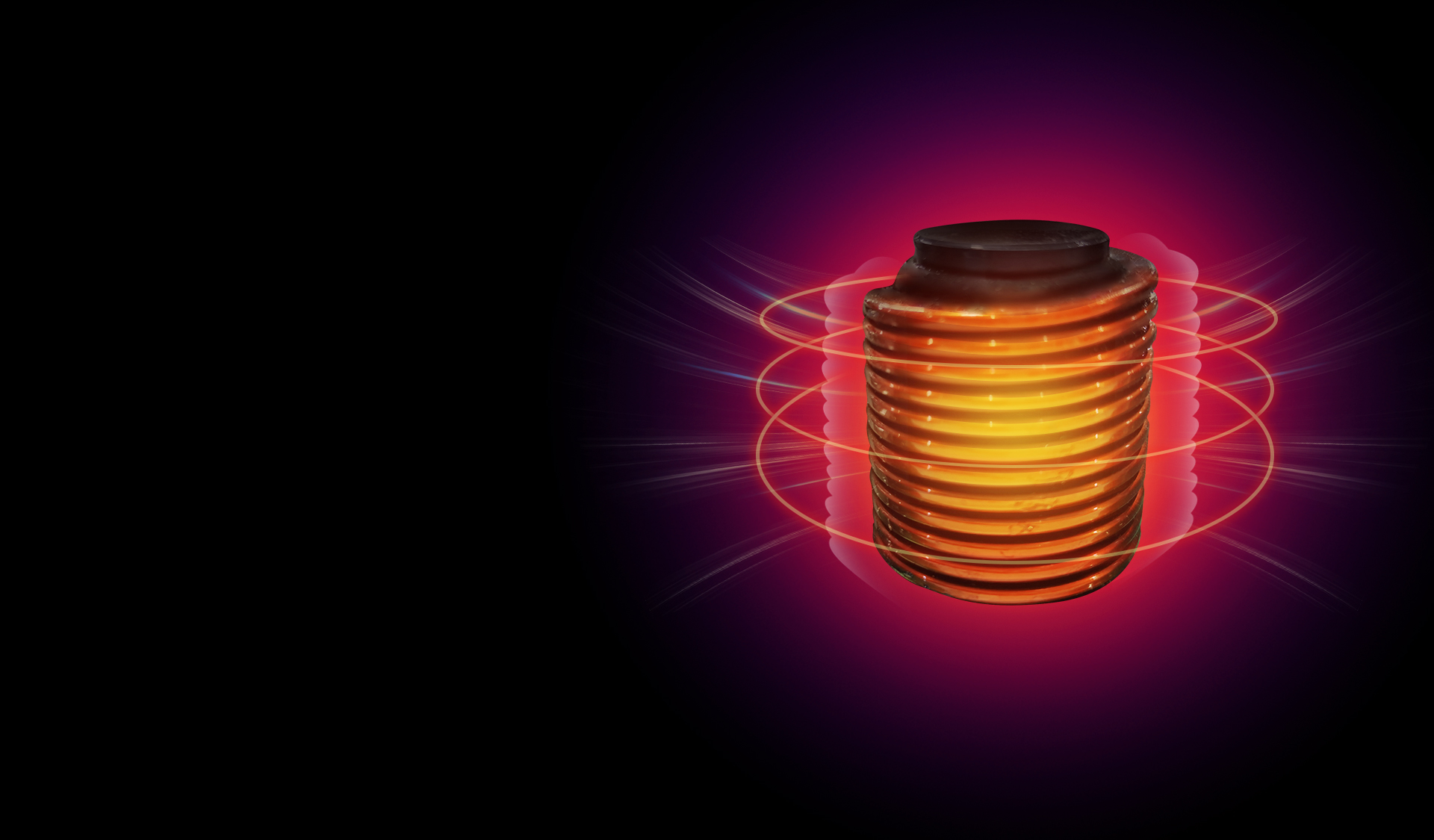

      Inductor vertical
      winding design

      Inductor core flat winding
      compared to traditional inductor winding, enlarging the air contact area of the flat winding, enhance the heat dissipation capability of the inductor, less heat loss

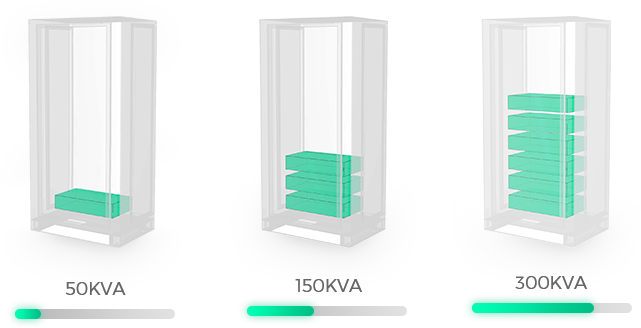

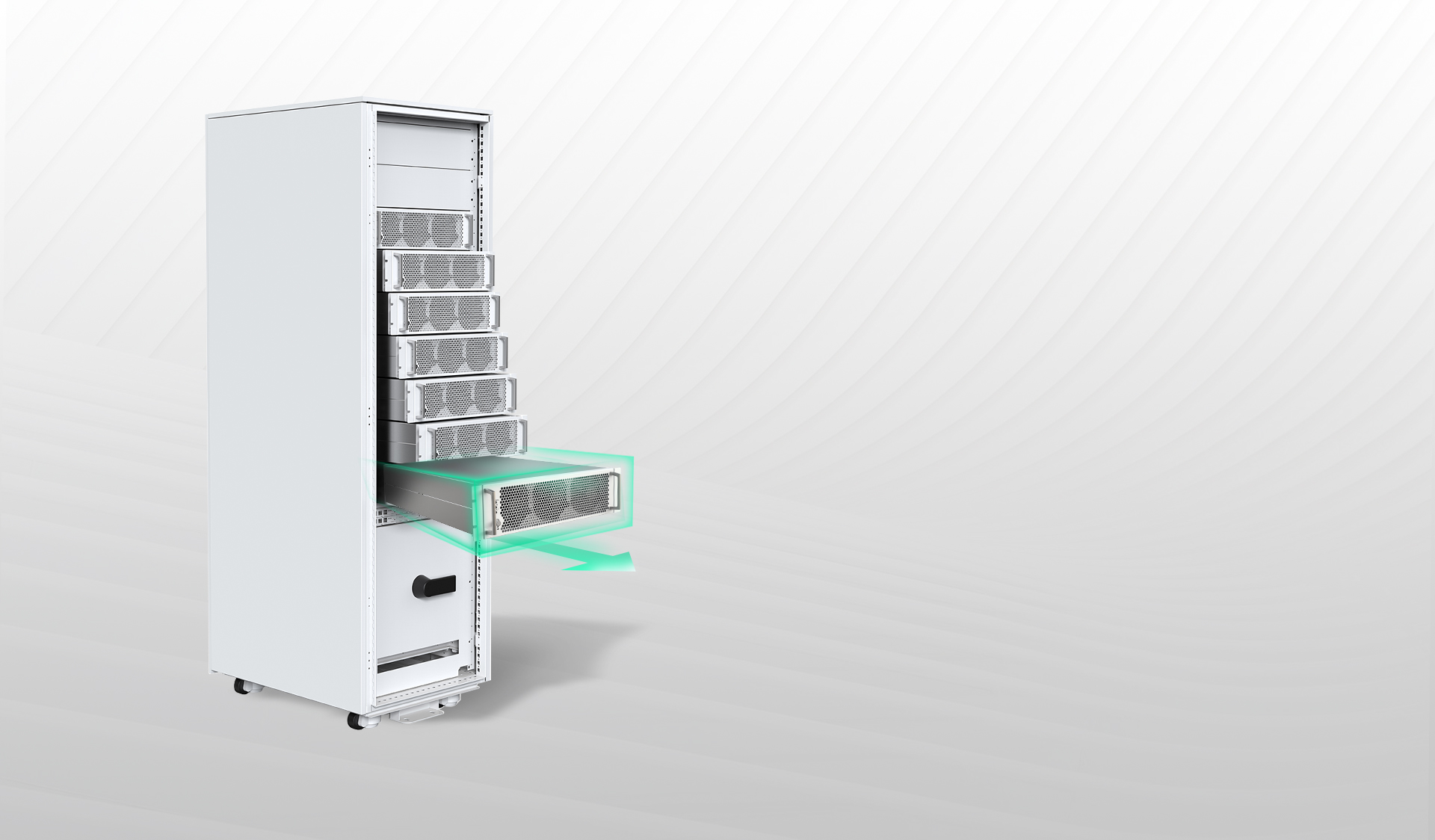

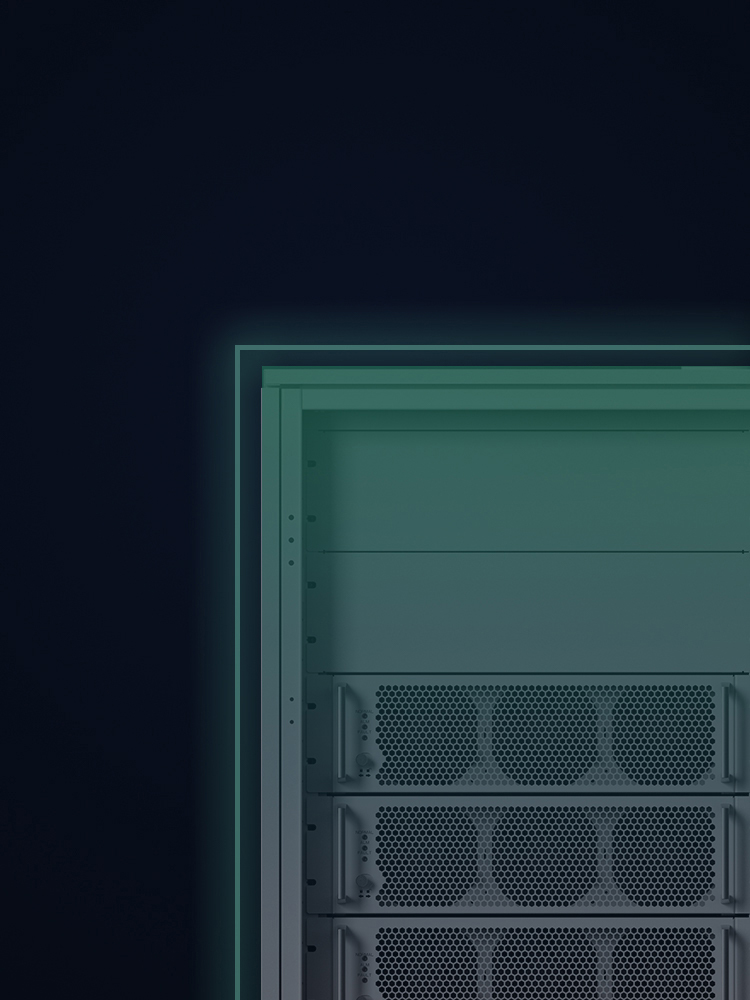

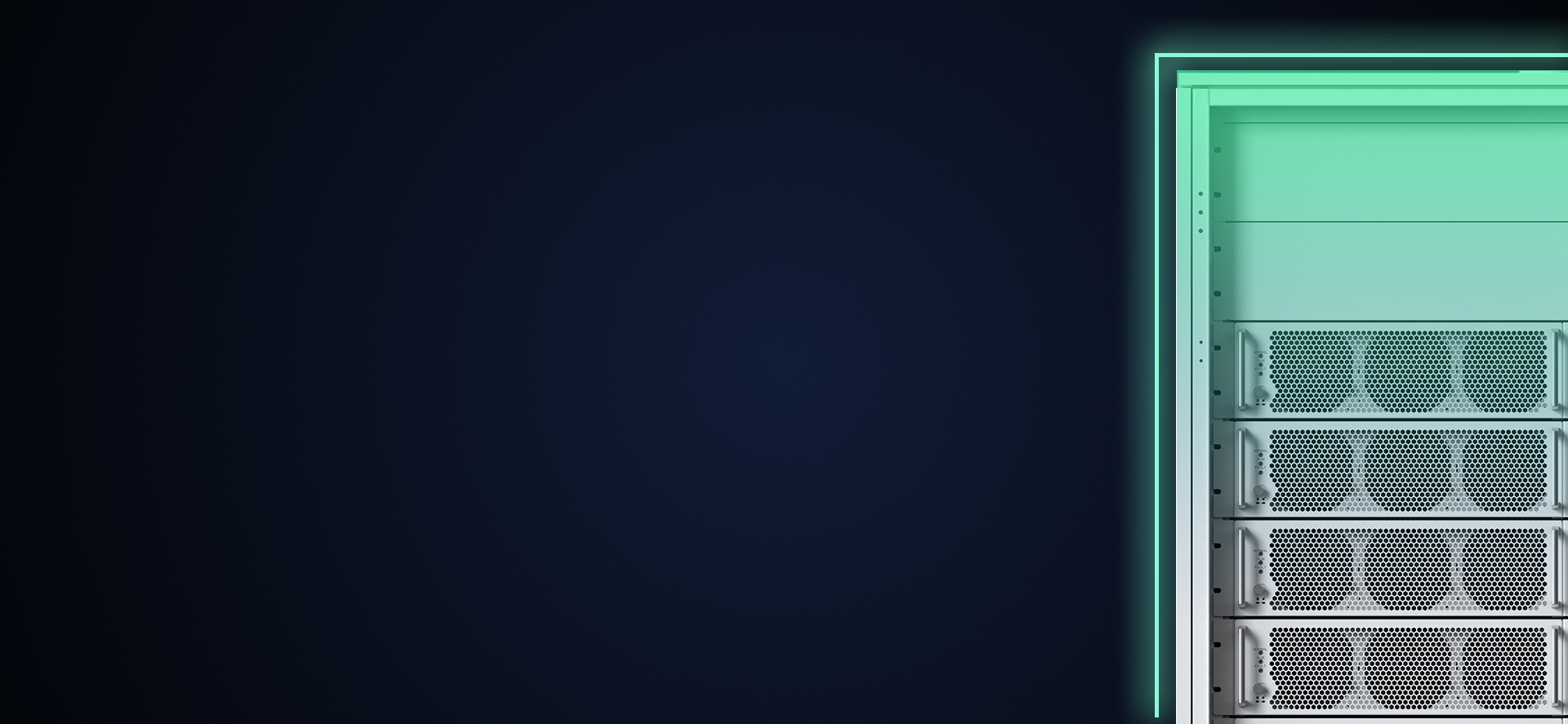

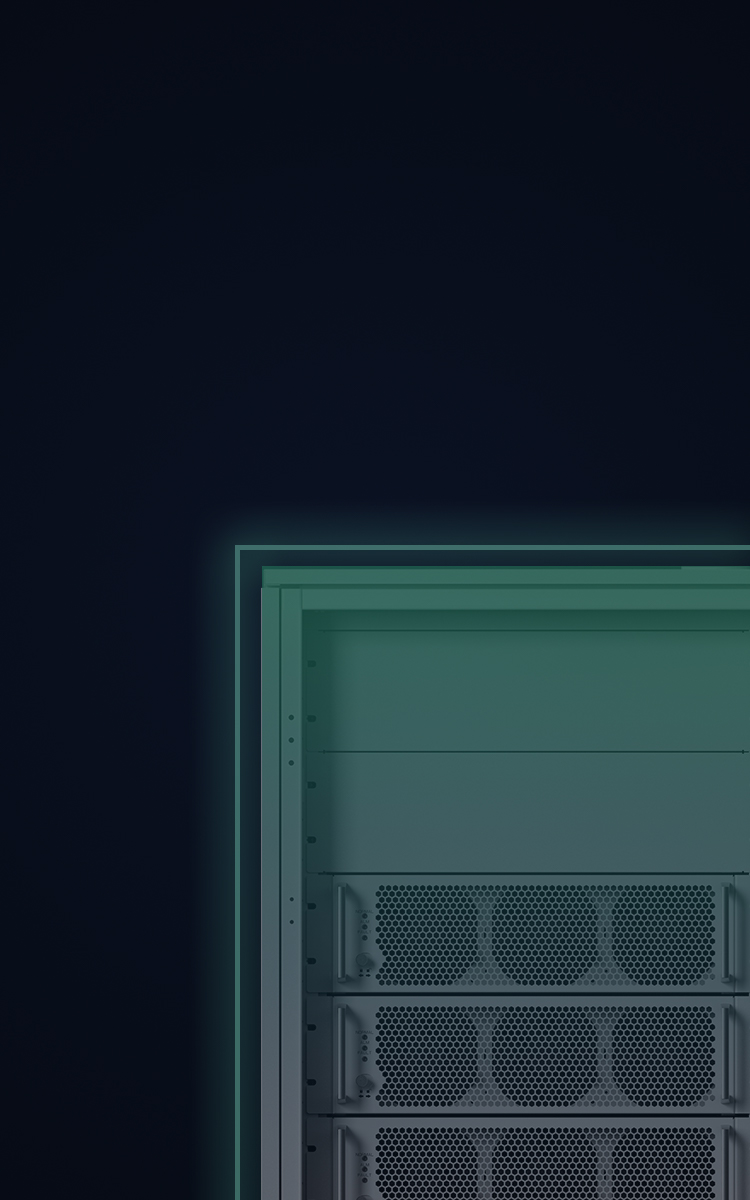

      Modular Design

      Fully modularized design，50~2400KVA flexible configuration



      View manual

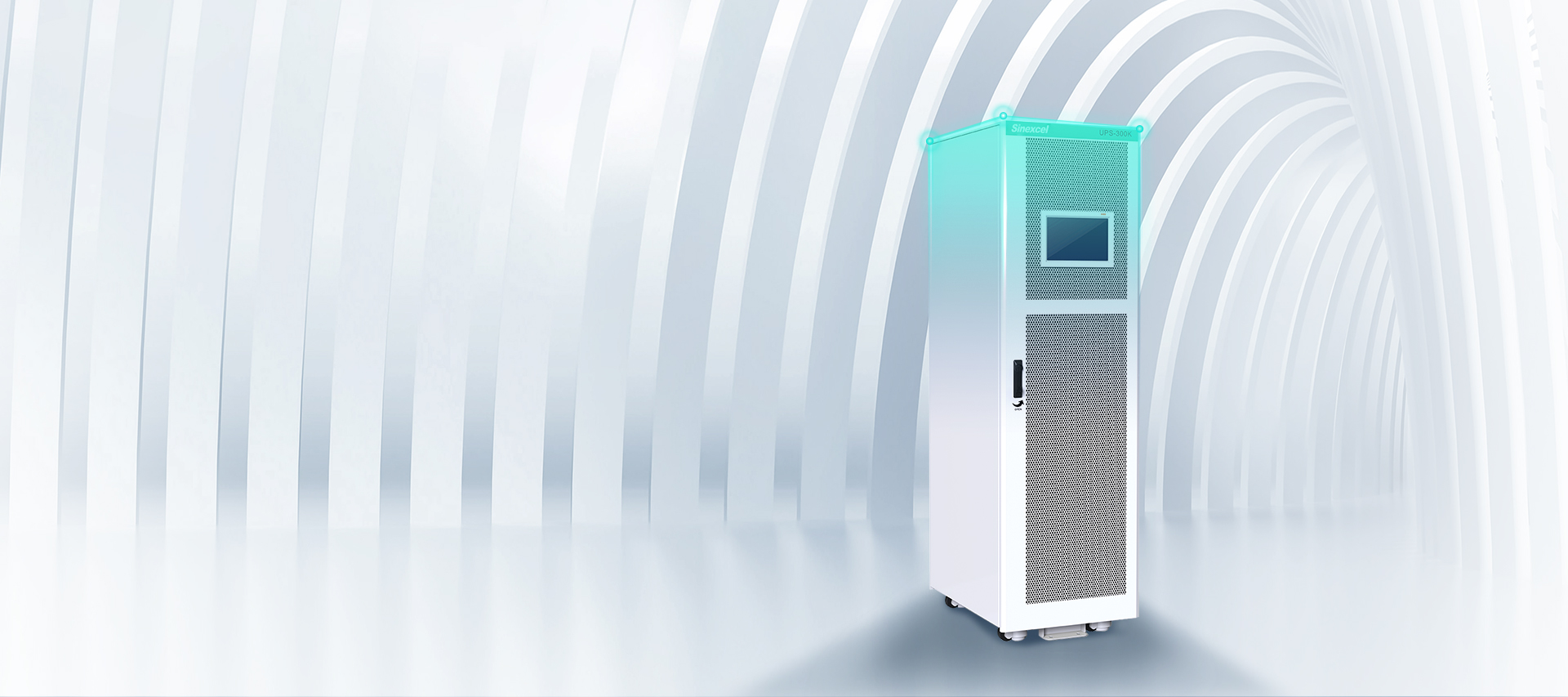

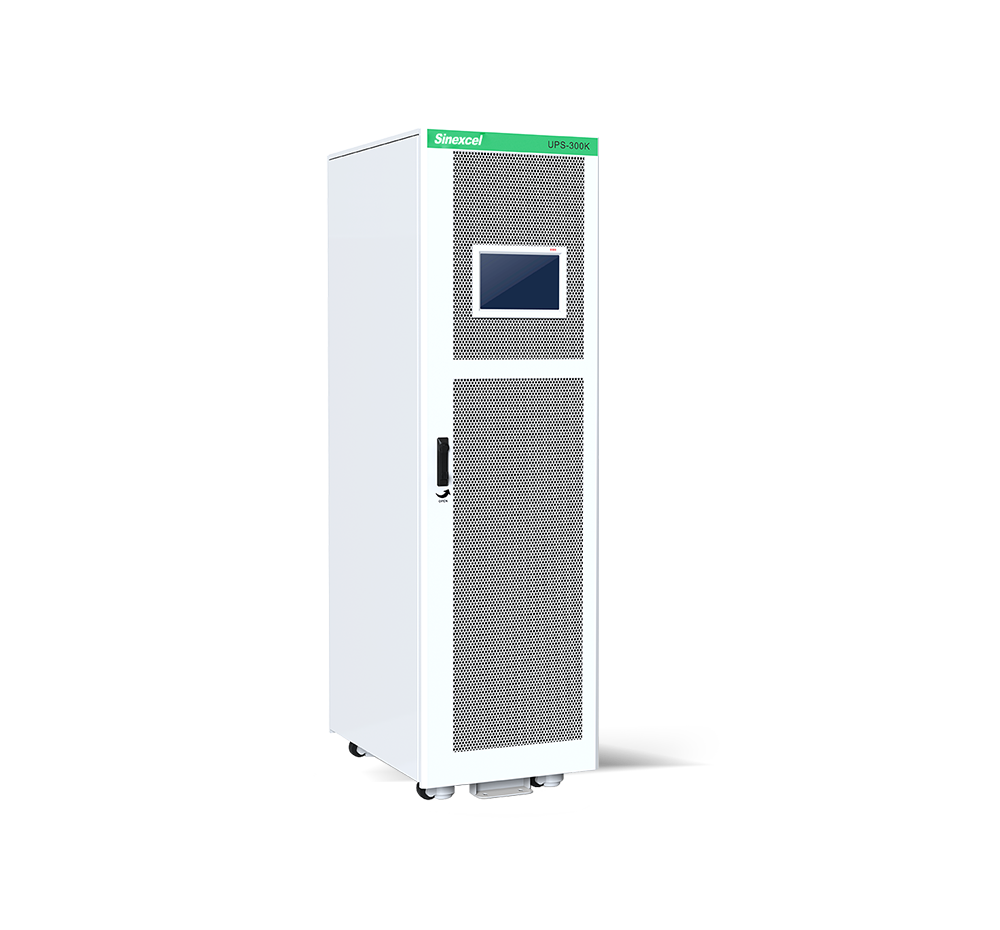

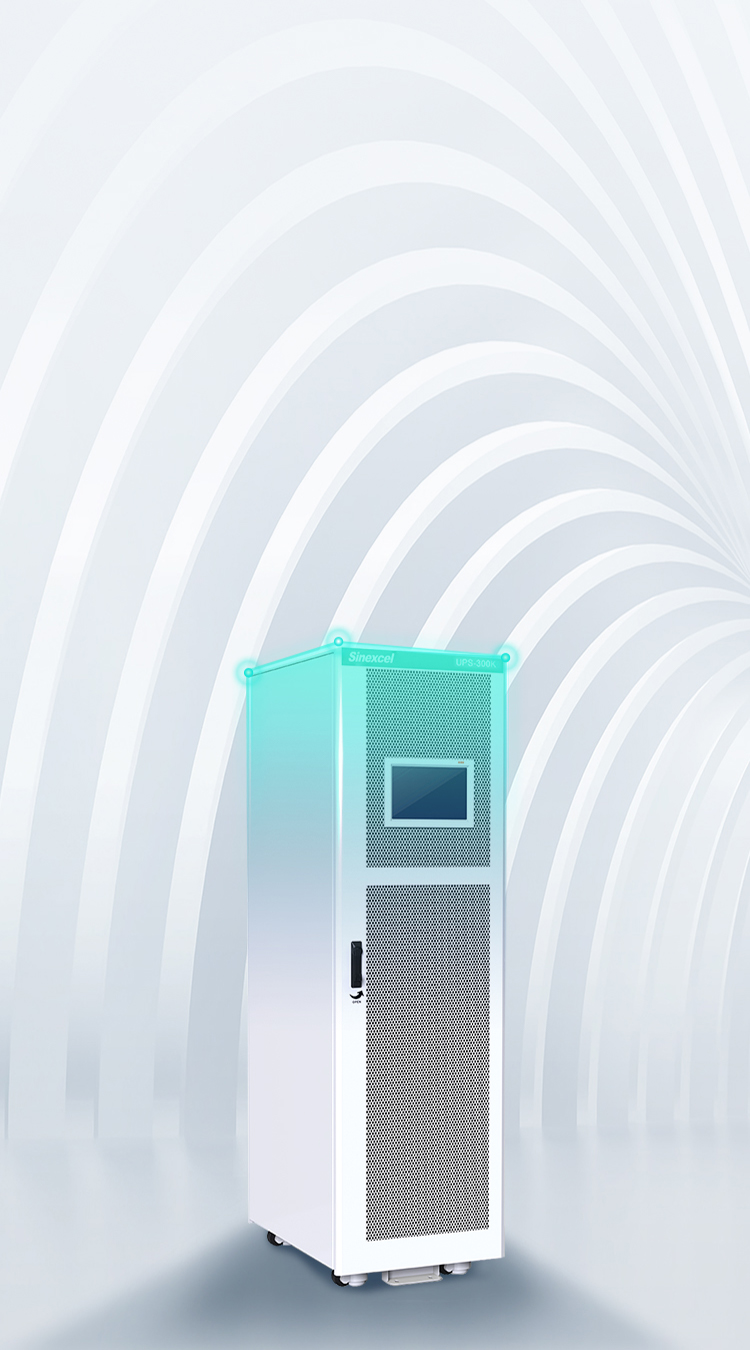

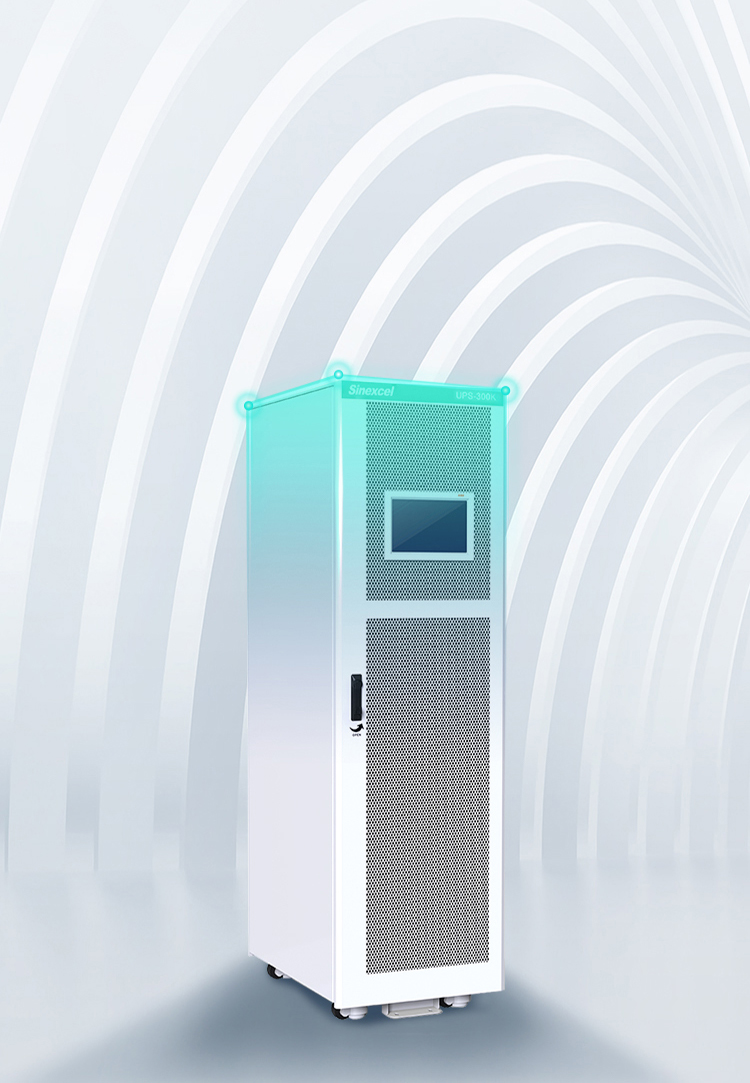

      Sinexcel Advanced UPS

      Capacity: 40KVA, 50~2400KVA

      Capacity ranging from 40kVA to 2400kVA, equipped with STS Eco-mode and on-line double conversion working modes that delivers continuous green backup power supply. High availability with low cost to meet different customers’ needs.

      IP rating : IP21 (can be customized)
      Certification : TLC / CE

      View manual

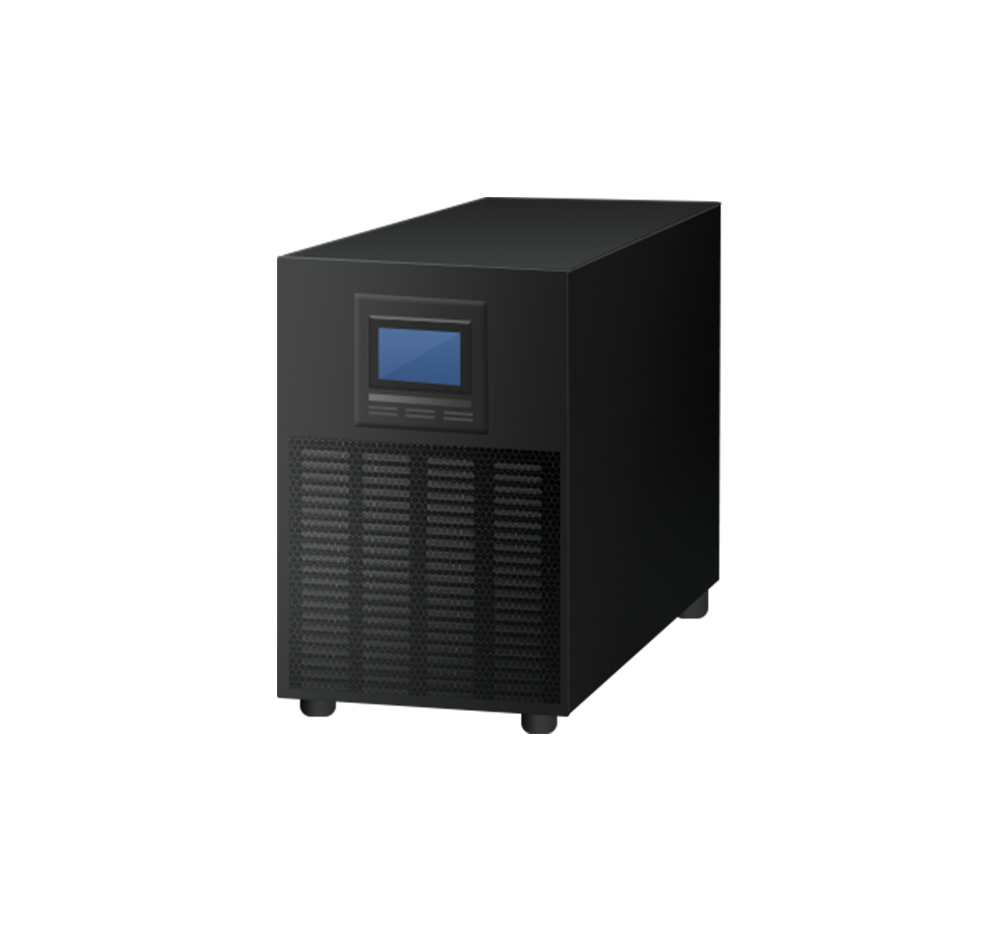

      Single Phase UPS

      Capacity: 1KVA, 2KVA, 3KVA, 6KVA, 10KVA

      Capacity ranging from 1kVA to 10kVA, single-phase product solutions with online double conversion power system to assure the continuous, high-quality power supply. Perfect power protection solution to reduce the downtime for small power scenarios.

      View manual

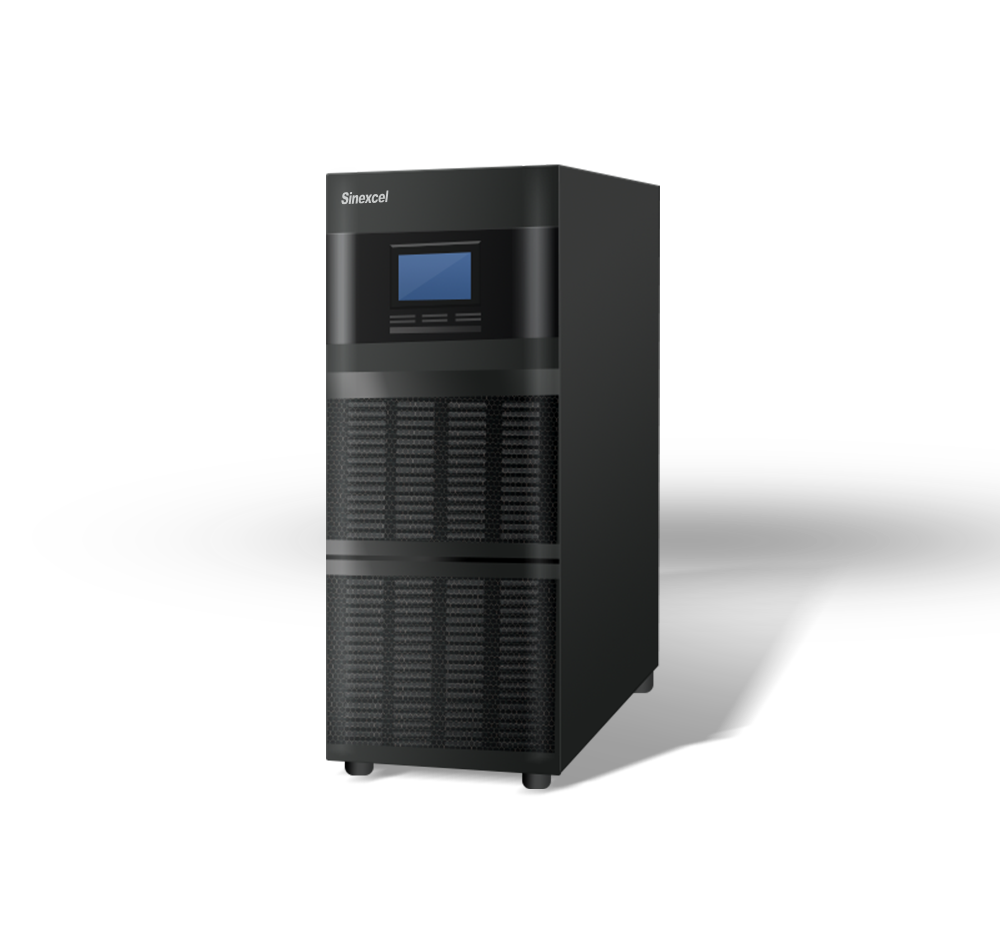

      Three Phase
      Small Capacity UPS

      Capacity: 10KVA, 15KVA, 20KVA, 30KVA

      Capacity ranging from 10kVA to 30kVA, three phase product solutions with online double conversion power system to assure the continuous, high-quality power supply. Perfect power protection solution to reduce the downtime for small power scenarios.

      View manual

      Single Phase UPS

      Three Phase Small Capacity UPS

      Sinexcel Advanced UPS

      UPS Applications

      IDC

      Not only data, but also the timeline of the data has great significance,
      any power failure or outage during the information processing, storage, and transmission can result into operation
      interruption and data loss, directly leading great economic loss to the data centers.

      Telecommunications

      Banking

      Networking

      Applications

      Industry

      Productivity and lead-time are two key factors of industry manufacturing,
      power interruptions may cause great loss in productivity and delay the delivery date, continuous power outage can also
      affect the normal operation and lifespan of the equipment.

      Manufacturing

      UPS Applications

      ECO building

      Backup power supply to ensure that the fire protection system, computing devices and electric footpath of ECO buildings to operate continuously in case of power failure.

      Commercial buildings

      Offices

      Shopping centers

      Applications

      Infrastructure

      Backup power supplies play a great role in healthcare facilities, government constructions.Medical equipment has zero tolerance to the power failure during the operation process;Railway stations and airports, lots of critical equipment like PLC systems, monitoring system, fire-protection, emergency lightings, security equipment, closely related to the normal operation of the transportation system.

      Healthcare

      Transportation
