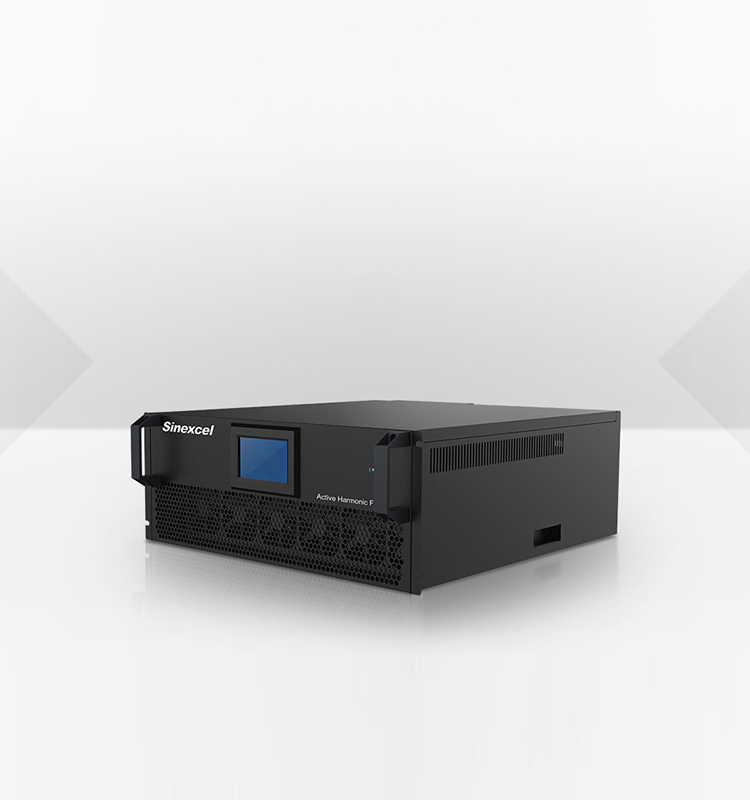

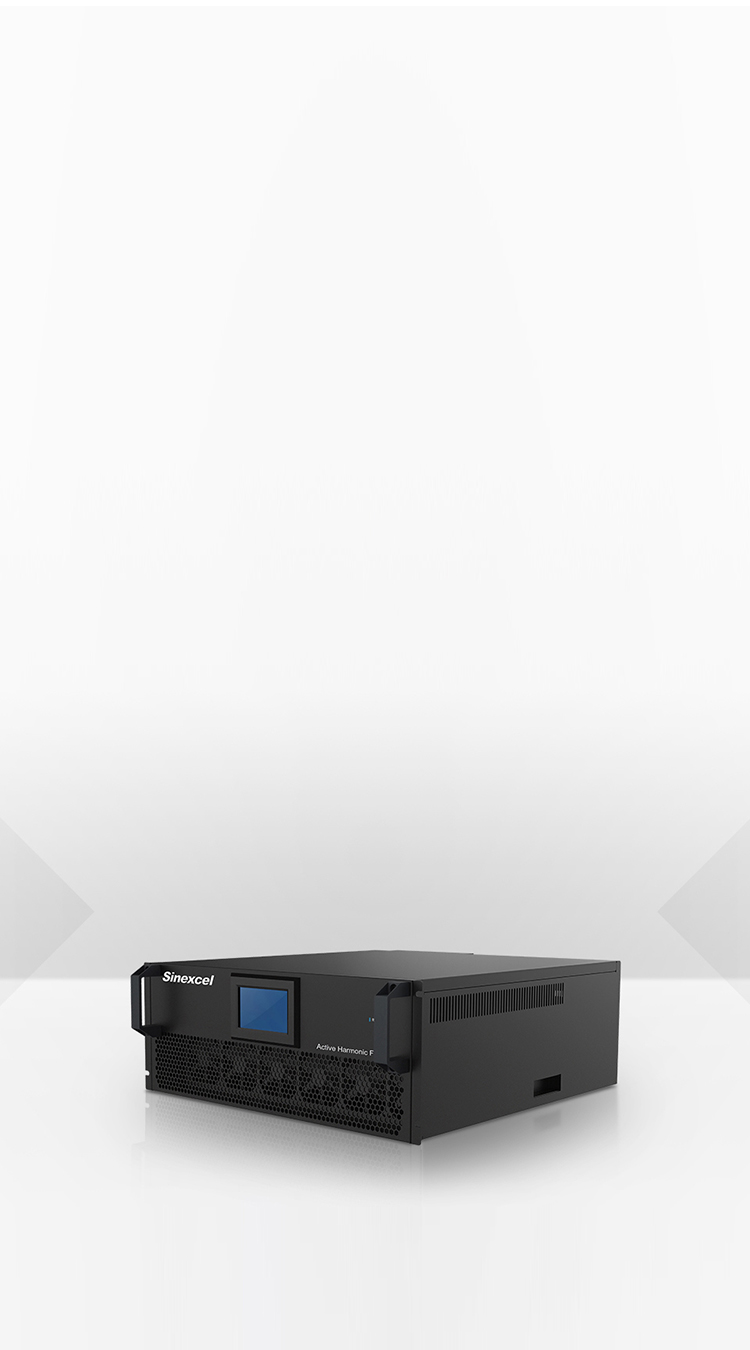

Sinexcel AHF has been on the technology leader of power quality industry Now, we have broken our own ceiling with brilliant innovations
98.5%
high efficiency
33%
heat loss reduction
53%
ventilation volume reduction
40%
size reduction
Meet the requirements of IEEE519
Different loads generate variety harmonic content which changes dynamically during different working conditions
To meet IEEE 519 standard, we must cover 2rd to 50th harmonic compensation, output compensation current follows the system harmonic variation, devoted to green power quality

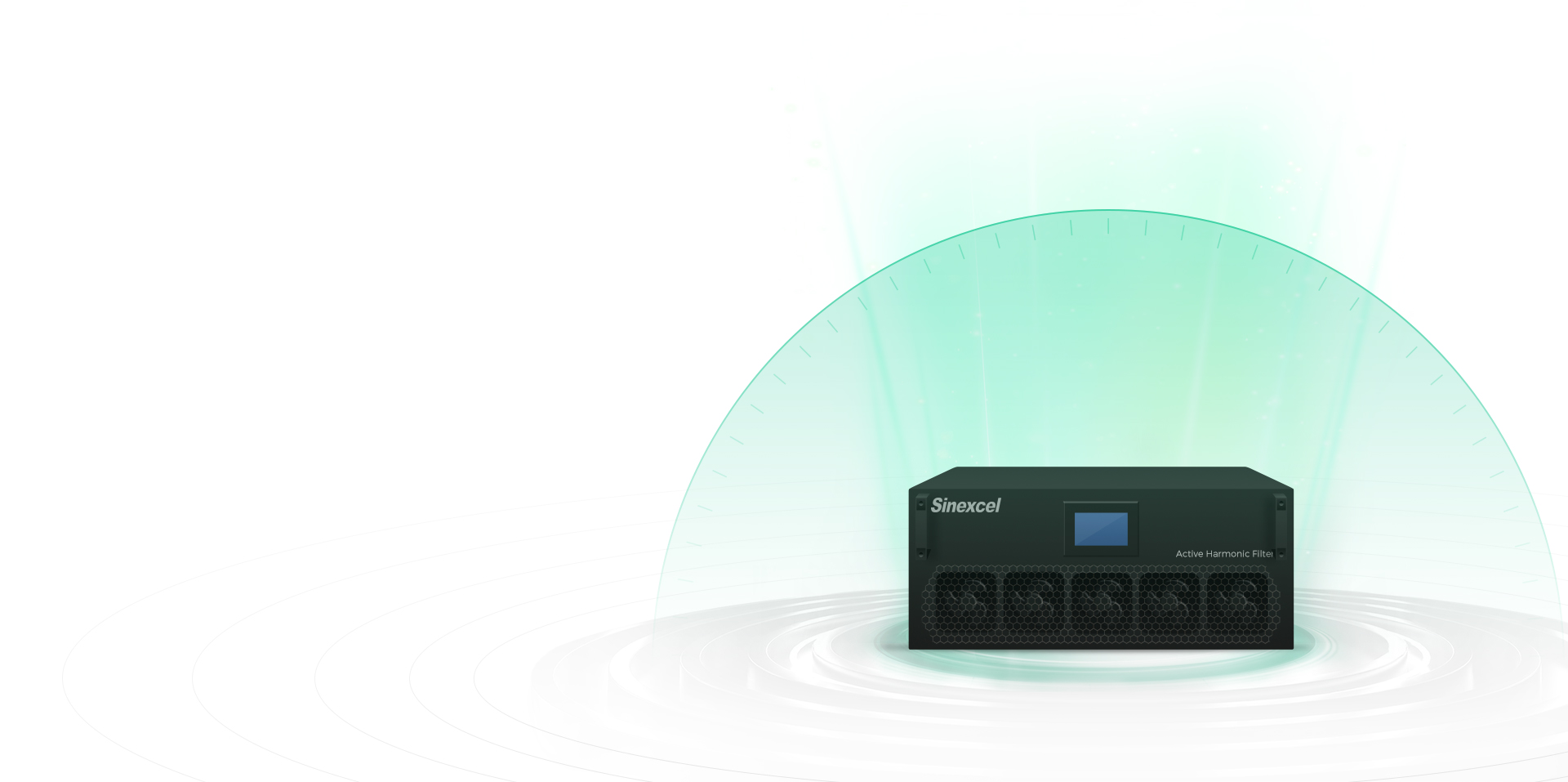

The law of energy conservation is the basic physical law, there’s a boundary and we are using technological innovation to approach its boundary. Smaller loss of energy conversion, greater savings

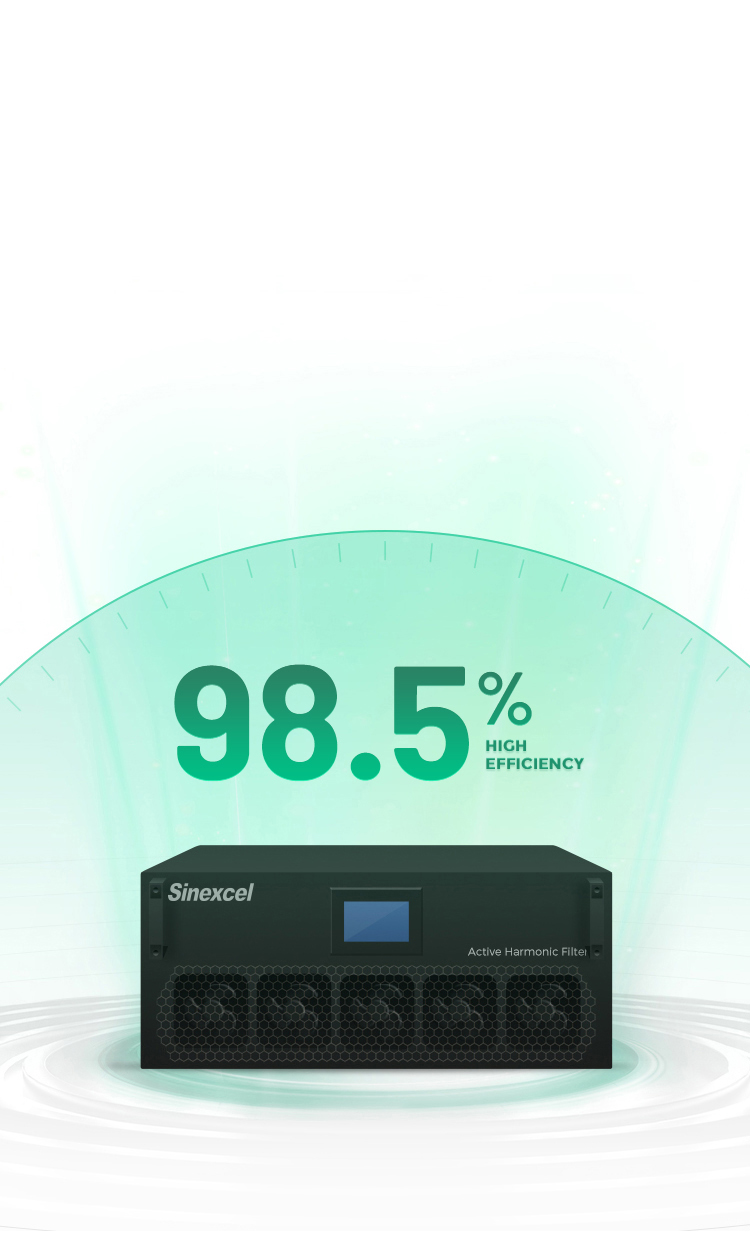

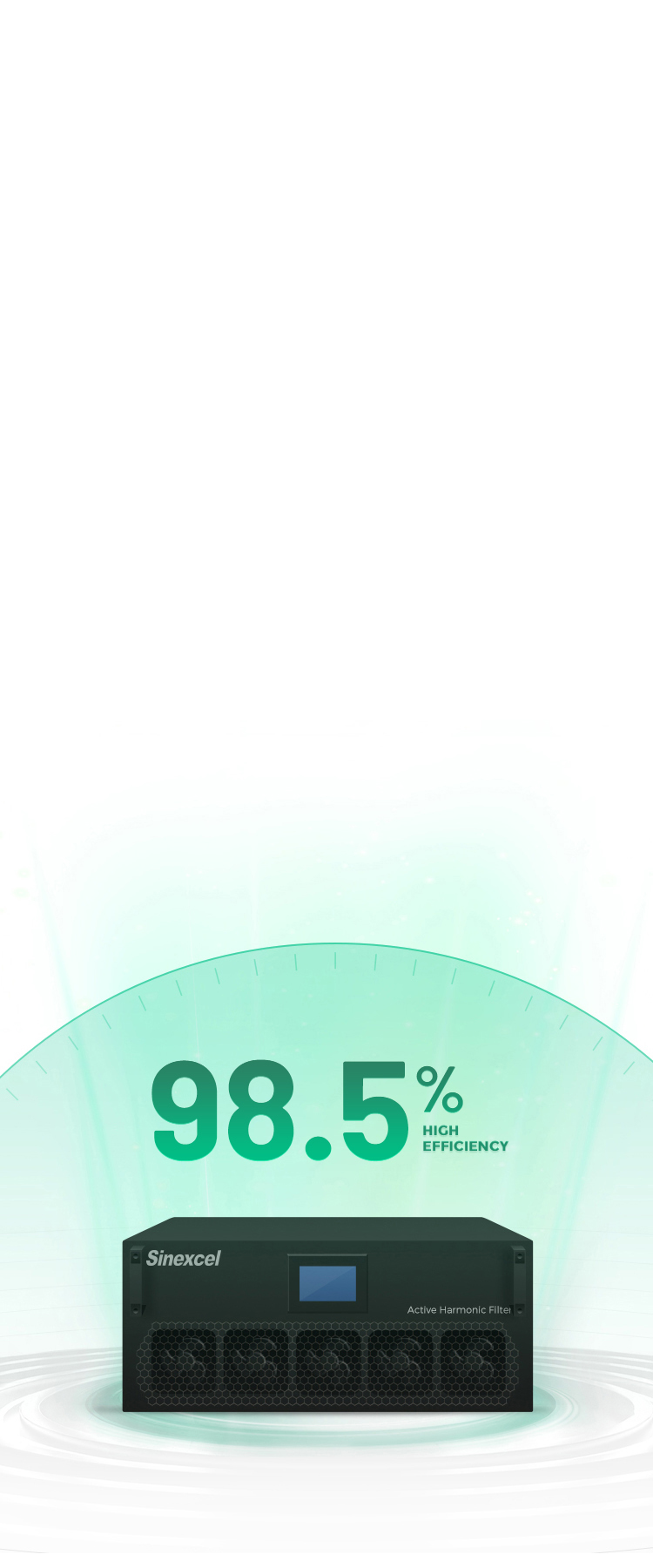

98.5%
PRO 98.5% high efficiency
50%
50% energy-saving comparing to legacy products
98.5
%
high efficiency
98.5% high efficiency energy saving 12,972 KWH / 150A
Every 0.5% efficiency improvement is a great step for power electronics
AHF Pro 3*0.5% increase, 12,972KWH energy savings per year

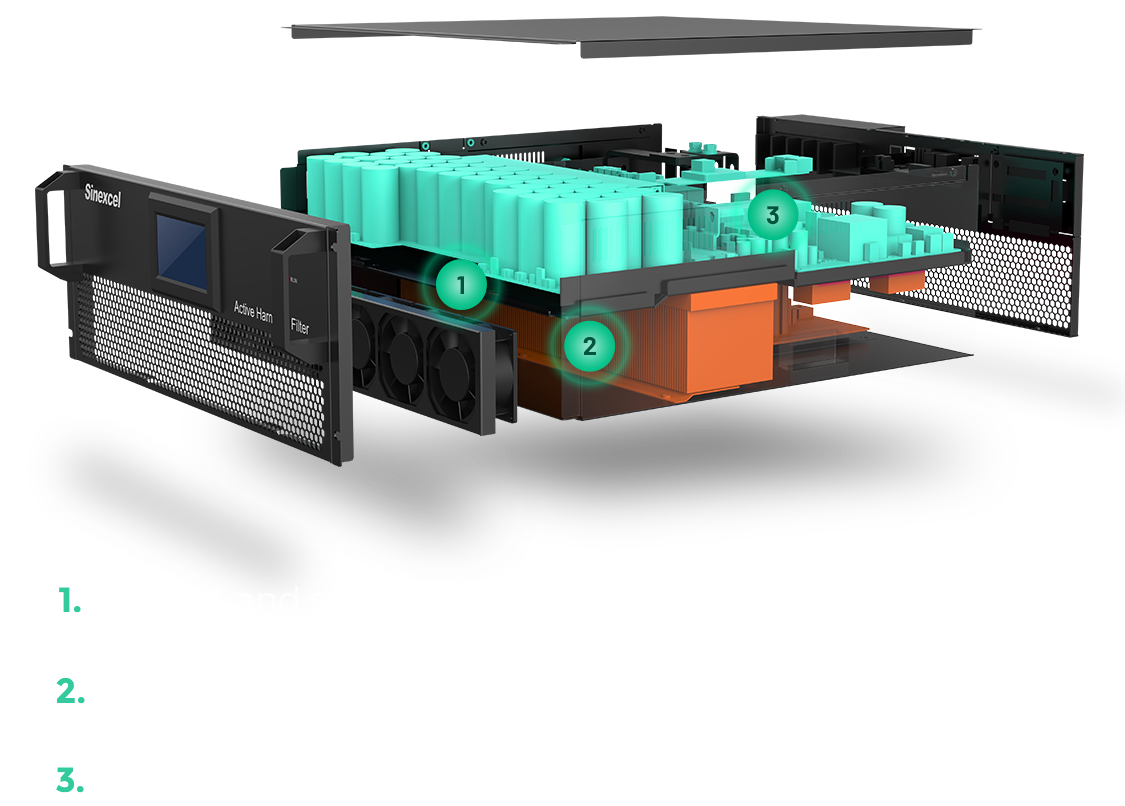

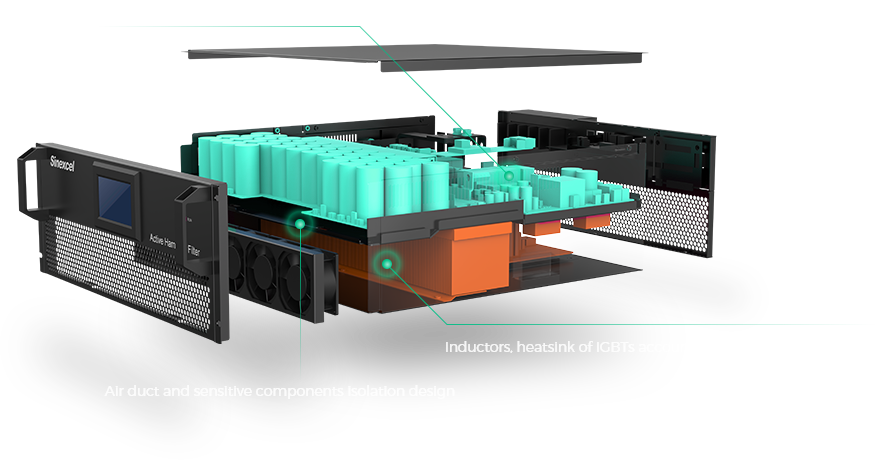

Air duct and sensitive components isolation design
53%
Ventilation volume reduction, full scenario applicable
Ventilation requirement is very small, only 390CFM, applicable for more industrial scenarios, easier for customers to use their cabinets or higher IP rating Lower air volume, less fan noise, more suitable for low noise requirements in business scenarios
33%
Heat loss reduction, minimize the heat effect
A continuation of high temperature can lead to the damage or failure of inverter, 33% heat loss reduction can extend the service life of the equipment, less maintenance cost

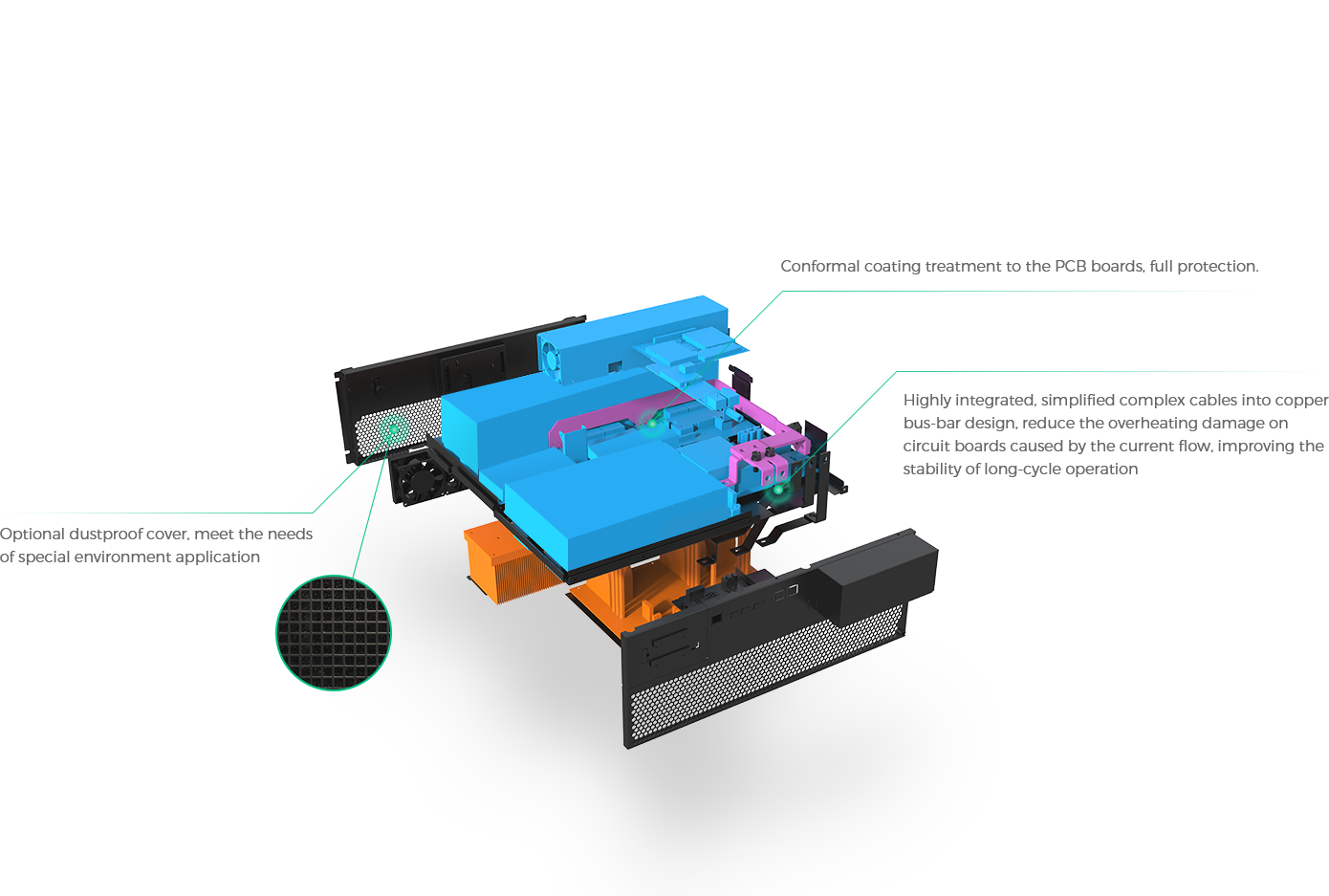

Innovation modular design

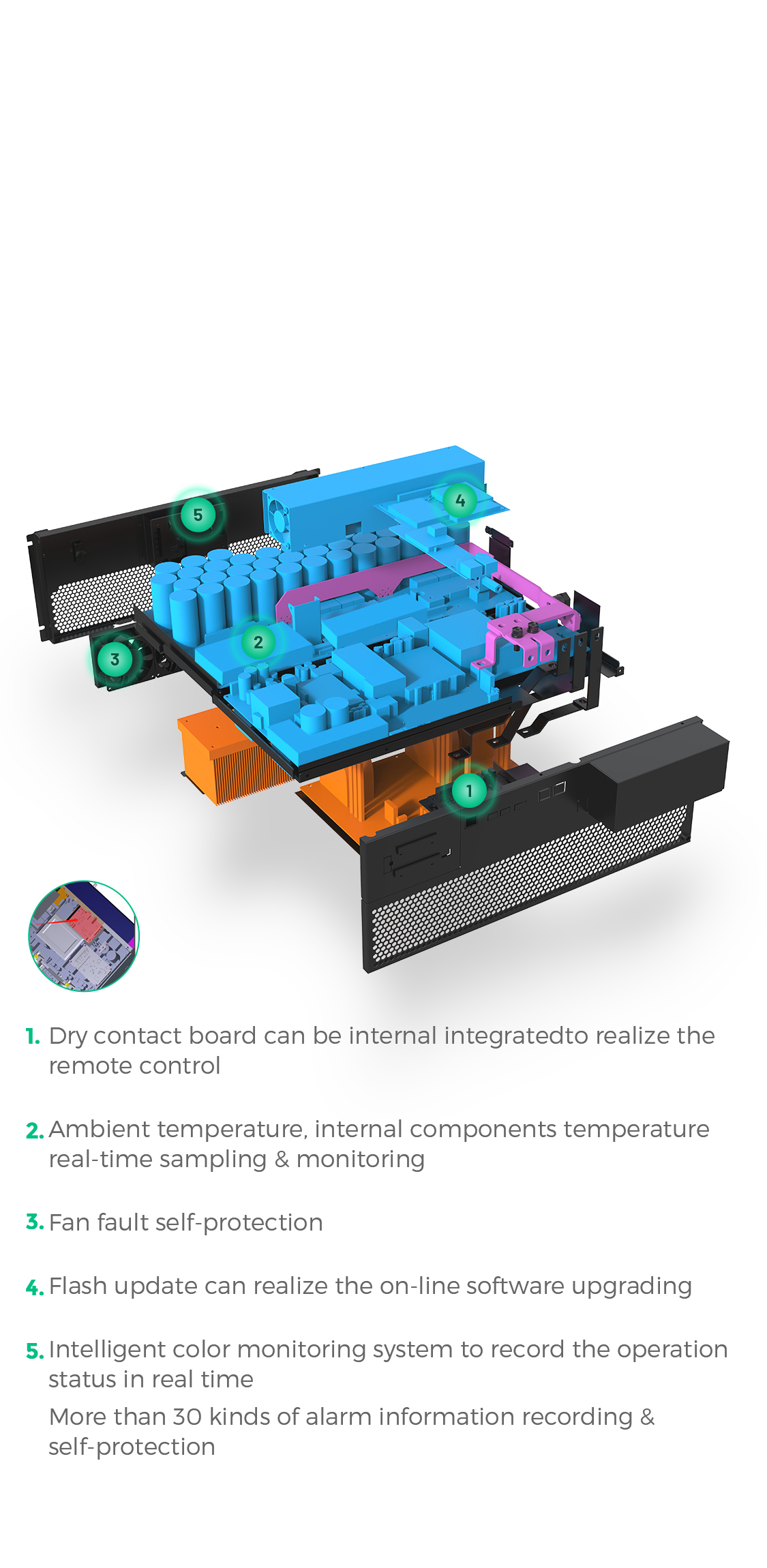

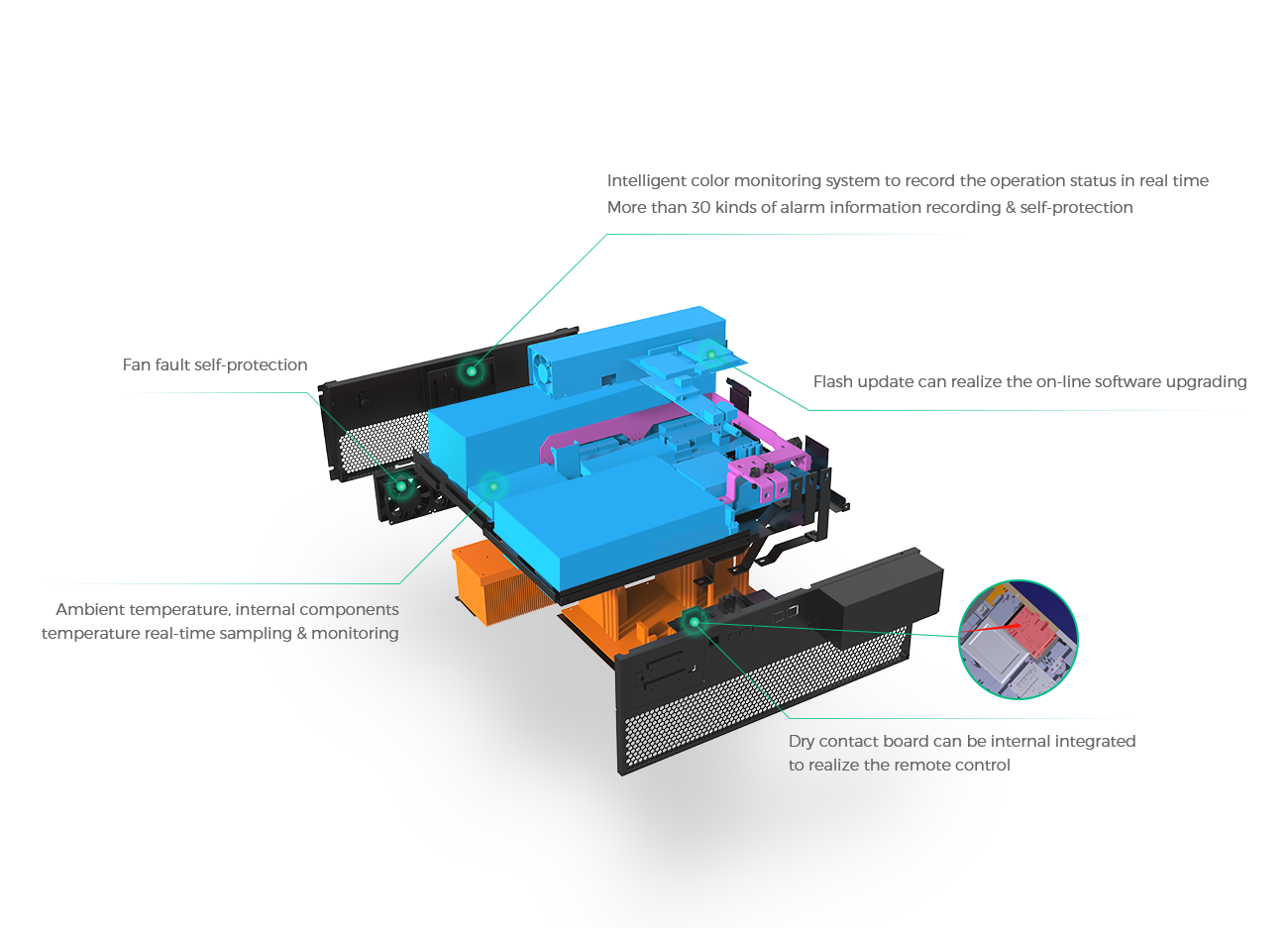

High reliability fully protection
cases

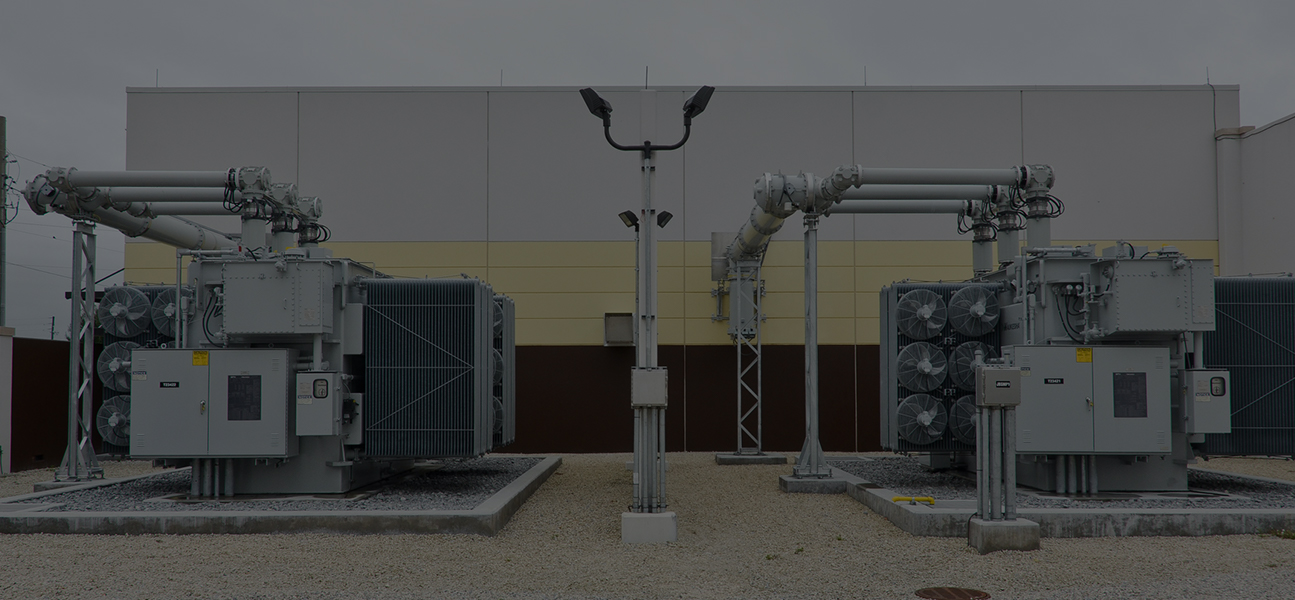

Super Engineering
Hong Kong, Singapore and Dubai international airports are super hub projects connecting Oceania, Asia and Europe, with a cumulative passenger flow more than 50 million. These are super projects of human beings.
