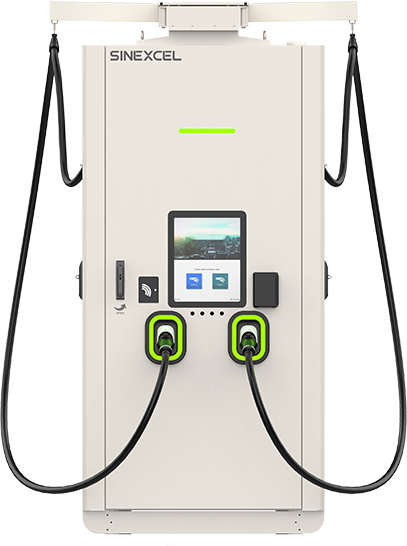

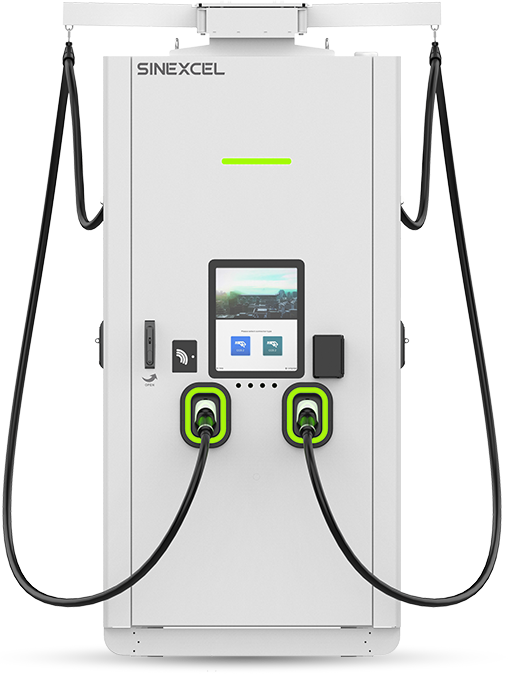

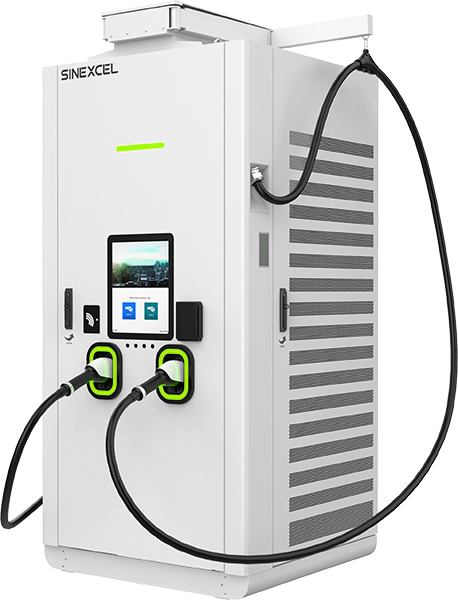

SEC640 Integrated Charger

The SEC640kW charger is the industry's largest all-in-one charger, offering premium operation and breakthrough expandability. Its intelligent design delivers high power and performance while significantly reducing infrastructure costs, providing unmatched scalability and TCO advantages.

View manual

Contact us

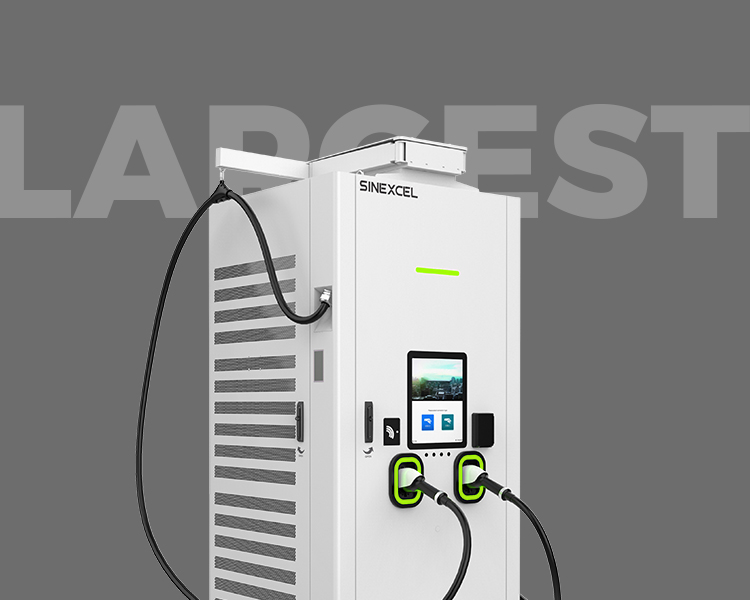

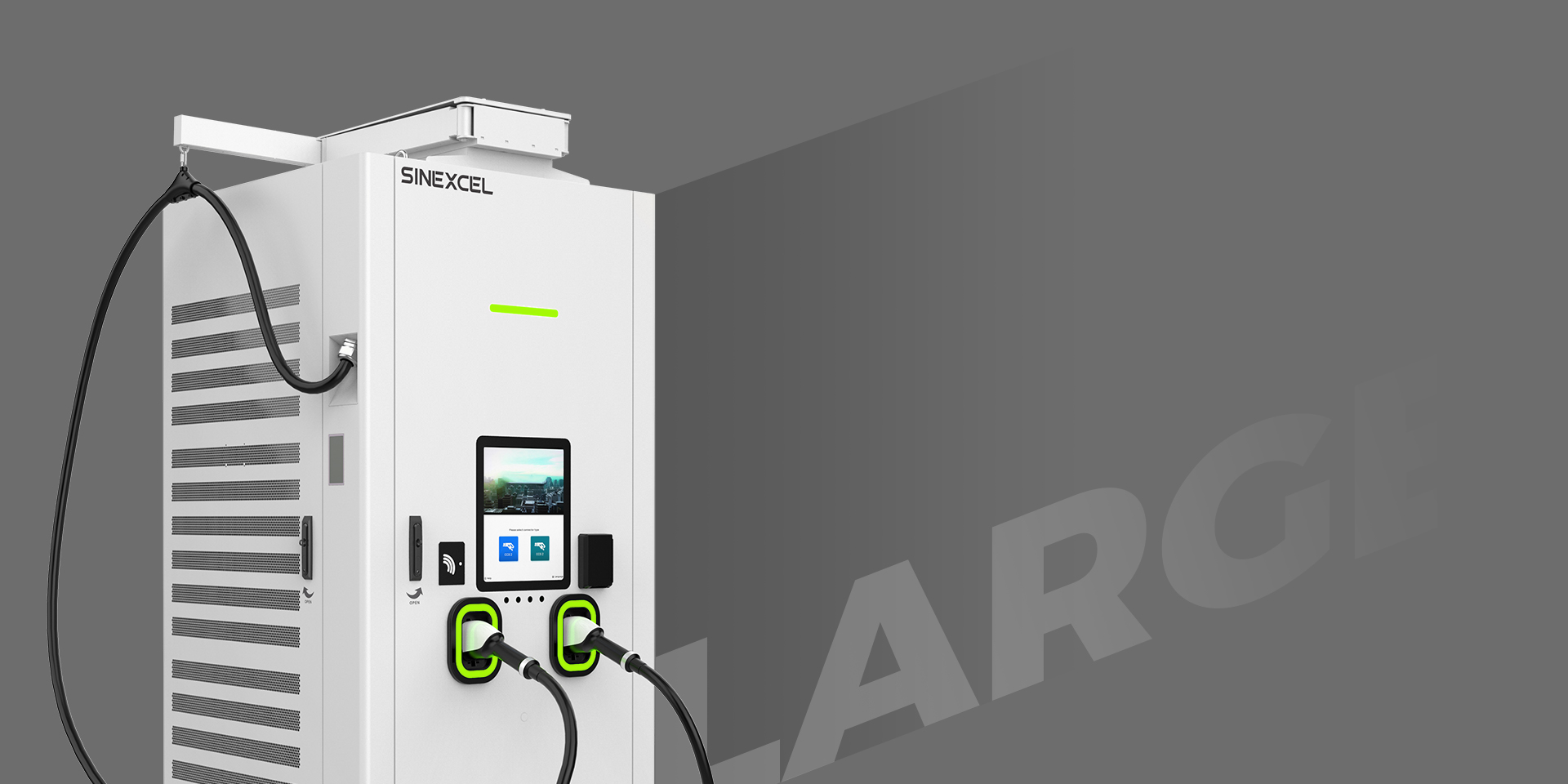

Industry’s Largest
Single Cabinet Power

With the highest single-cabinet power output in the industry, this charger is engineered to meet the fast and reliable charging needs of both commercial and passenger vehicles. Its design supports constant high power and large current output, making it ideal for large fleets and high-demand environments. Whether it's for daily fleet operations or high-traffic locations, this charger ensures continuous, efficient performance under heavy usage.

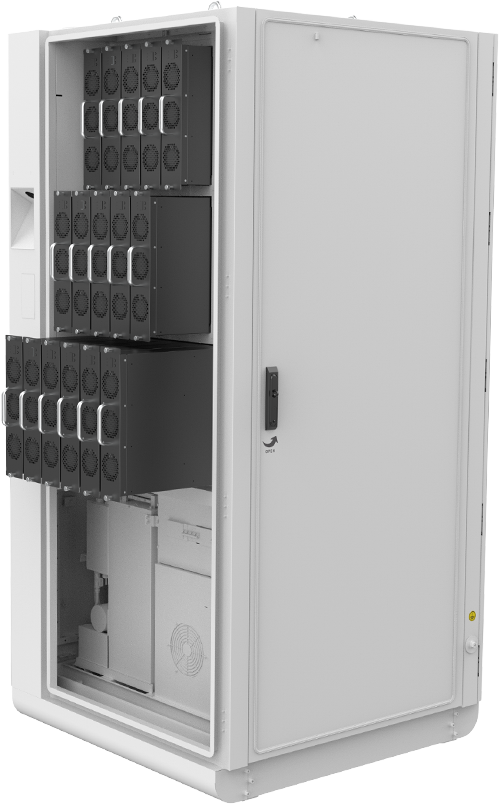

Modular Architecture for
Flexible Power Ranges

This charger utilizes a modular architecture, supporting a flexible power range from 400kW to 640kW. This adaptability ensures it can meet the diverse energy demands of various vehicle types, while its scalability makes it an ideal solution for future-proof installations and the evolving needs of the market.

Modular architecture

400kW to 640kW

Flexible Configuration to Meet Your Needs

The 640kW charger is designed for maximum versatility. It can function as an integrated charger for fast power delivery, or it can be configured as a power bank, supporting up to 4 connectors, enabling simultaneous charging of multiple vehicles, which boosts overall charging throughput and enhances operational efficiency for flexible power adjustments.

SCENARIO 1 SCENARIO 2

PLUS

Ultra Fast Charging

640kW Integrated Charger

Dual liquid cooling & air cooling connectors available

500ALiquid Cooling

Boost 700A

350ANatural Cooling

Boost 500A

CCS Dispenser

Liquid Cooling

Maximum
Current

700A

Continous
Current

500A

Natural Cooling

Maximum
Current

500A

Continous
Current

350A

Charging Applications

Fleet Charging

Construction Equipment Charging

Highway Charging

Optimized Lifecycle Cost

High Conversion Efficiency

Powered by In-House Developed SIC Power Modules
Peak efficiency 96.2% Average efficiency 96.1%
Our solution delivers significant long-term electricity cost savings.

7.02kWh

Each 640kW EV charger reduces energy loss by 7.02kWh per hour

15,374 kWh

Save 15,374 kWh of energy annually by charging for 6 hours a day

Low TCO

Across the Entire Value Chain for Long-Term Value Creation

Lower Installation Costs:

The SEC640 charging system cuts cabling and infrastructure expenses compared to traditional 320kW cabinet solutions.

O&M Platform:

Benefit from easy maintenance and remote monitoring, maximizing uptime and convenience.

User-Centered Design for Enhanced Convenience

Cable Management System

Equipped with a Cable Management System (CMS) that organizes charging cables and minimizes wear, enhancing user convenience and extending the lifespan of cables

Cable Management System

Equipped with a Cable Management System (CMS) that organizes charging cables and minimizes wear, enhancing user convenience and extending the lifespan of cables

Easy and Intuitive Operation

Featured physical buttons for easy control, multiple payment options, and a straightforward charging process, ensuring a hassle-free experience for every user.

Easy and Intuitive Operation

Featured physical buttons for easy control, multiple payment options, and a straightforward charging process, ensuring a hassle-free experience for every user.

Barrier-Free Design

Complying with European accessibility act the charger ensures top-level accessibility and ease of use for all users.

Barrier-Free Design

Complying with European accessibility act the charger ensures top-level accessibility and ease of use for all users.

TECHNICAL SPECIFICATIONS


INPUT CHARACTERISTIC	Input voltage 400 VAC +/- 10%	Input frequency 50 / 60 Hz	Input type 3P + N + PE / 3P + PE	Max Input current 1160A	Max Input power 685kVA	Power factor 0.99	THDi <5%	Grounding type TN-S, TT, TN-C-S
OUTPUT CHARACTERISTIC	Connector options CCS2	Connector quantity 2 (Up to 4 connectors with extra dispenser)	Output voltage CCS2: 200-1000 Vdc 300~1000V is the output voltage of constant power output.	Maximum output current CCS2: 500A (Liquid cooled @ continuous charging) CCS2: 350A (Natural cooled @ continuous charging)	Switching step 160kW	Rated power DC: 640kW	Peak efficiency 96.2%
ENVIRONMENT	Operational altitude <2000 m	Operating temperature -30 °C to +50 °C	Humidity 5 %-95 % Rh non-condensing
STRUCTURE	IP and IK rating IP54/ IK10	Dimensions W990mmD990mmH2000mm	Weight ≤850 kg	Installation Outdoor floor mounted
COMPONENTS	Cable length 5m (Exposed from the charger)	Screen 15" HD touchscreen	RFID Reader ISO 14443 A + B to part 4 and ISO/IEC 15693, Mifare1, NFC
OTHERS	Communication interface Ethernet/GSM, 4G	Language English (Support customizing other languages)	Communication protocol OCPP1.6J, OCPP 2.0.1	Payment method Credit card, QR code, RFID card, autocharge	EMC Class A (industrial)	Protection Undervoltage protection, overvoltage protection, DC overcurrent protection, over-temperature protection, surge protection device, emergency stop protection	Barrier free design Yes
STANDARDS AND CERTIFICATIONS	Standards IEC 61851, IEC 62196, DIN 70121, ISO 15118, etc.	Certifications CE, RED, MID compliant
